Inspection Procedure 4

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 4

Vehicle does not reverse	Probable cause
If the vehicle does not reverse when the selector lever is shifted from N to R range while the engine is idling, the cause is probably abnormal pressure in the reverse clutch or low reverse brake or a malfunction of the reverse clutch, low reverse brake or valve body.	Abnormal reverse clutch pressure Abnormal low reverse brake pressure Malfunction of the low reverse solenoid valve Malfunction of the reverse clutch Malfunction of the low reverse brake Malfunction of the valve body

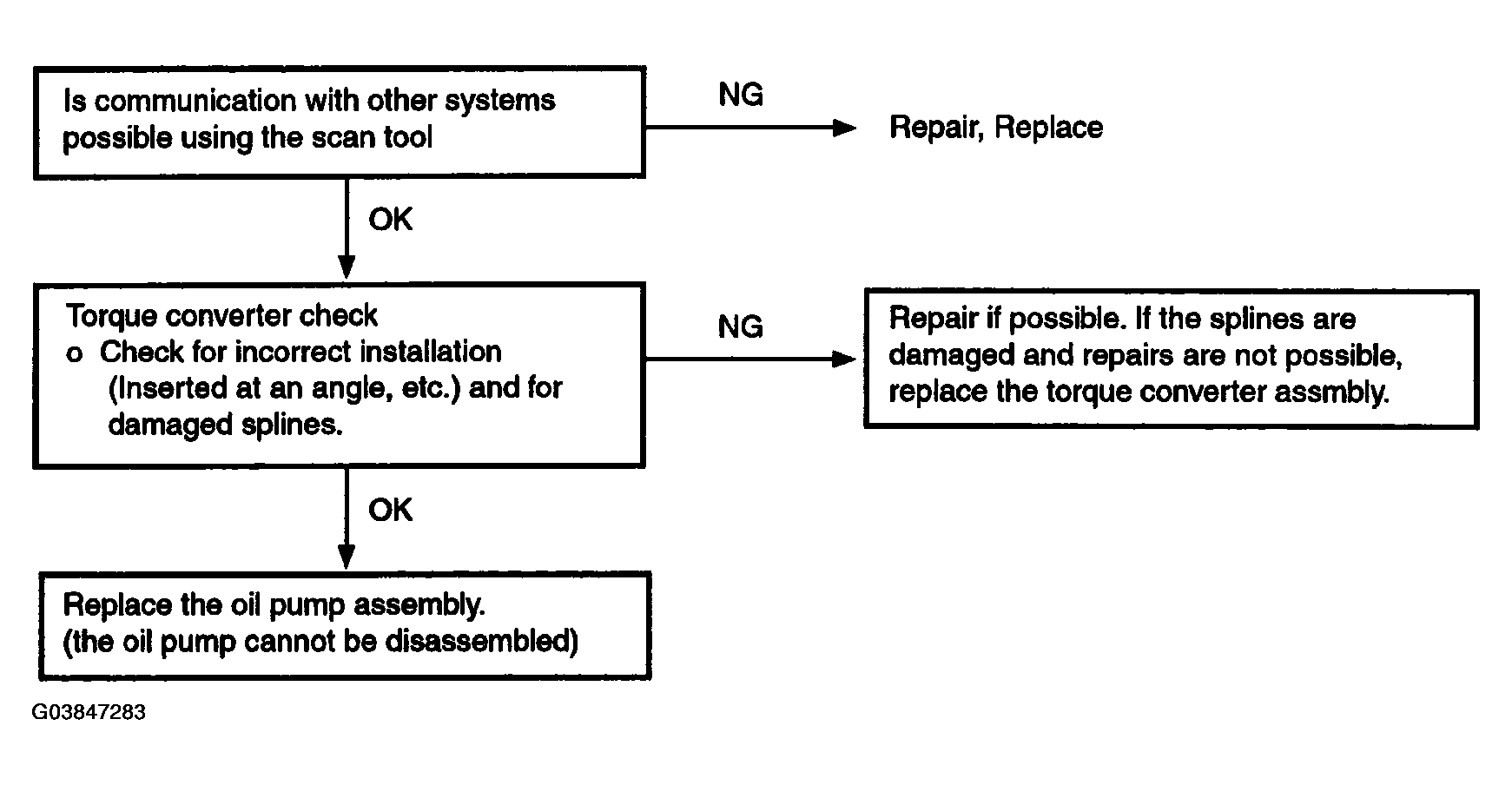

Fig 1: Trouble Symptoms - Inspection Procedure 4 Flow Chart

Courtesy of HYUNDAI MOTOR CO.
