Inspection Procedure 3

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 3

Vehicle cannot move Probable cause
If the vehicle does cannot move forward when the selector lever is shifted from N to D or L range while the engine is idling, the cause is probably abnormal line pressure or a malfunction of the underdrive clutch or valve body.
  • Abnormal line pressure
  • Malfunction of the underdrive solenoid valve
  • Malfunction of the underdrive clutch
  • Malfunction of the valve body

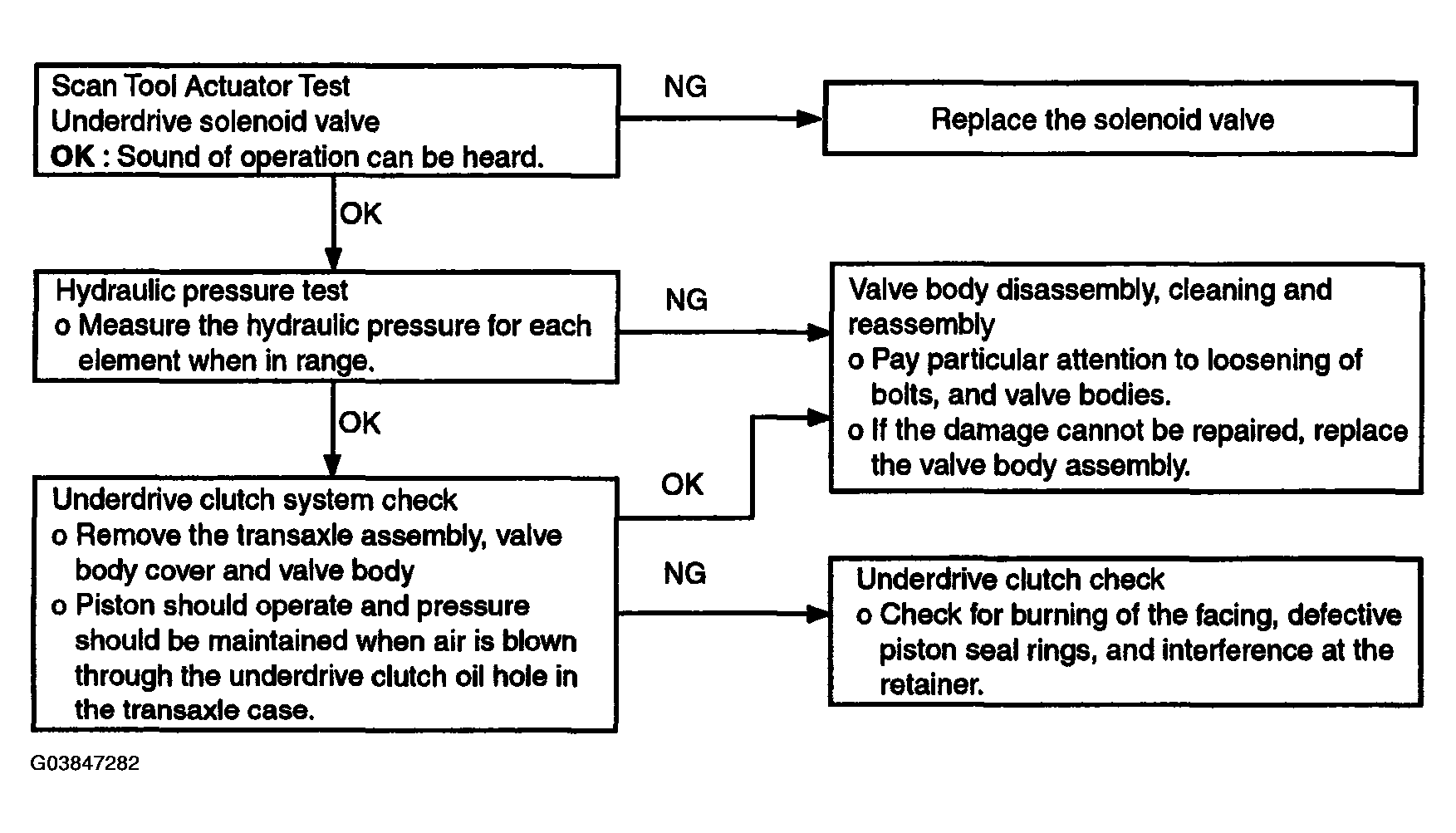

Fig 1: Trouble Symptoms - Inspection Procedure 3 Flow Chart
G03847282Courtesy of HYUNDAI MOTOR CO.
