Inspection Procedure 2

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 2

Starting impossible Probable cause
Starting is not possible when the selector lever is in P or N range. In such cases, the cause is probably a defective engine, torque converter or oil pump.
  • Malfunction of the engine
  • Malfunction of the torque converter
  • Malfunction of the oil pump

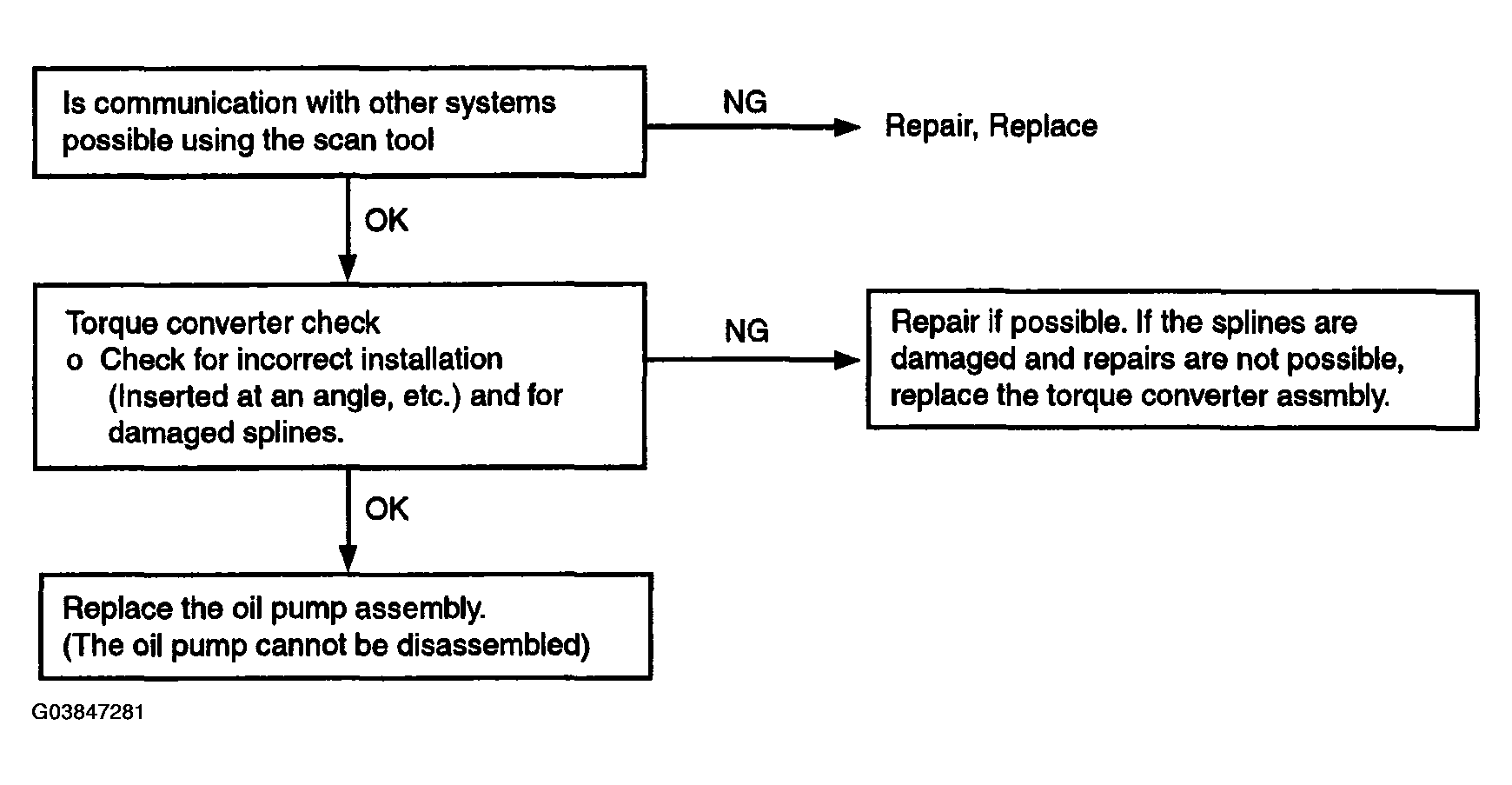

Fig 1: Trouble Symptoms - Inspection Procedure 2 Flow Chart
G03847281Courtesy of HYUNDAI MOTOR CO.
