Inspection Procedure 15

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 15

Vibration	Probable cause
If vibration occurs when driving at constant speed or when accelerating in top range, the cause is probably abnormal torque converter clutch pressure or a malfunction of the engine, torque converter clutch solenoid, torque converter or valve body.	Abnormal torque converter clutch pressure Malfunction of the engine Malfunction of the torque converter clutch solenoid Malfunction of the torque converter Malfunction of the valve body

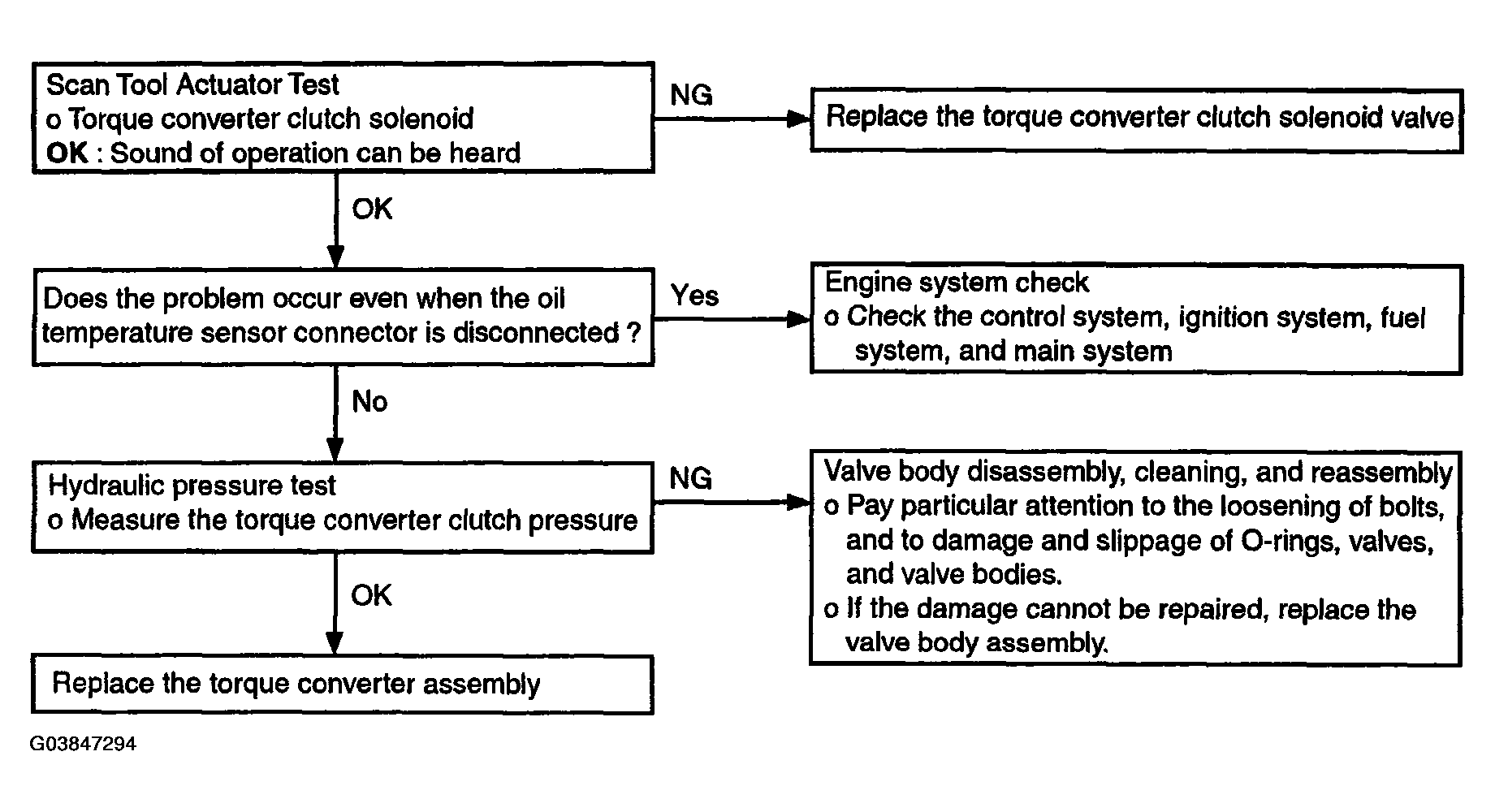

Fig 1: Trouble Symptoms - Inspection Procedure 15 Flow Chart

Courtesy of HYUNDAI MOTOR CO.
