Inspection Procedure 14

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 14

Poor acceleration Probable cause
If acceleration is poor even if downshifting occurs while driving, the cause is probably a malfunction of the engine system, a brake or clutch, or the transaxle is in fail-safe.
  • Malfunction of the engine system
  • Malfunction of the brake or clutch
  • Transaxle in fail-safe

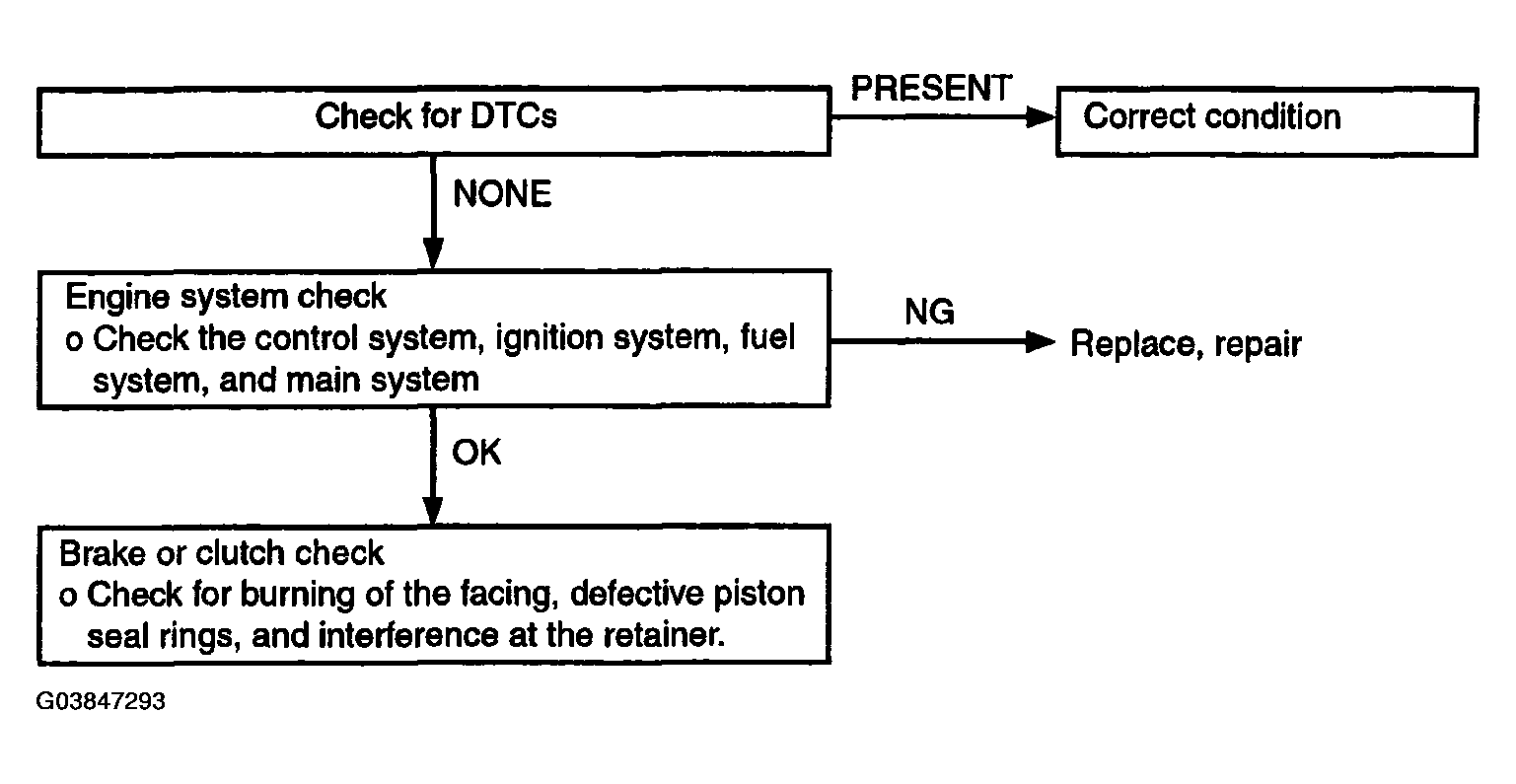

Fig 1: Trouble Symptoms - Inspection Procedure 14 Flow Chart
G03847293Courtesy of HYUNDAI MOTOR CO.
