Inspection Procedure 13

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 13

No diagnostic trouble codes (Does not shift) Probable cause
If shifting does not occur while driving and no diagnostic trouble codes are given, the cause is probably a malfunction of the Park/Neutral switch, or the TCM.
  • Malfunction of the Park/Neutral switch
  • Malfunction of the TCM

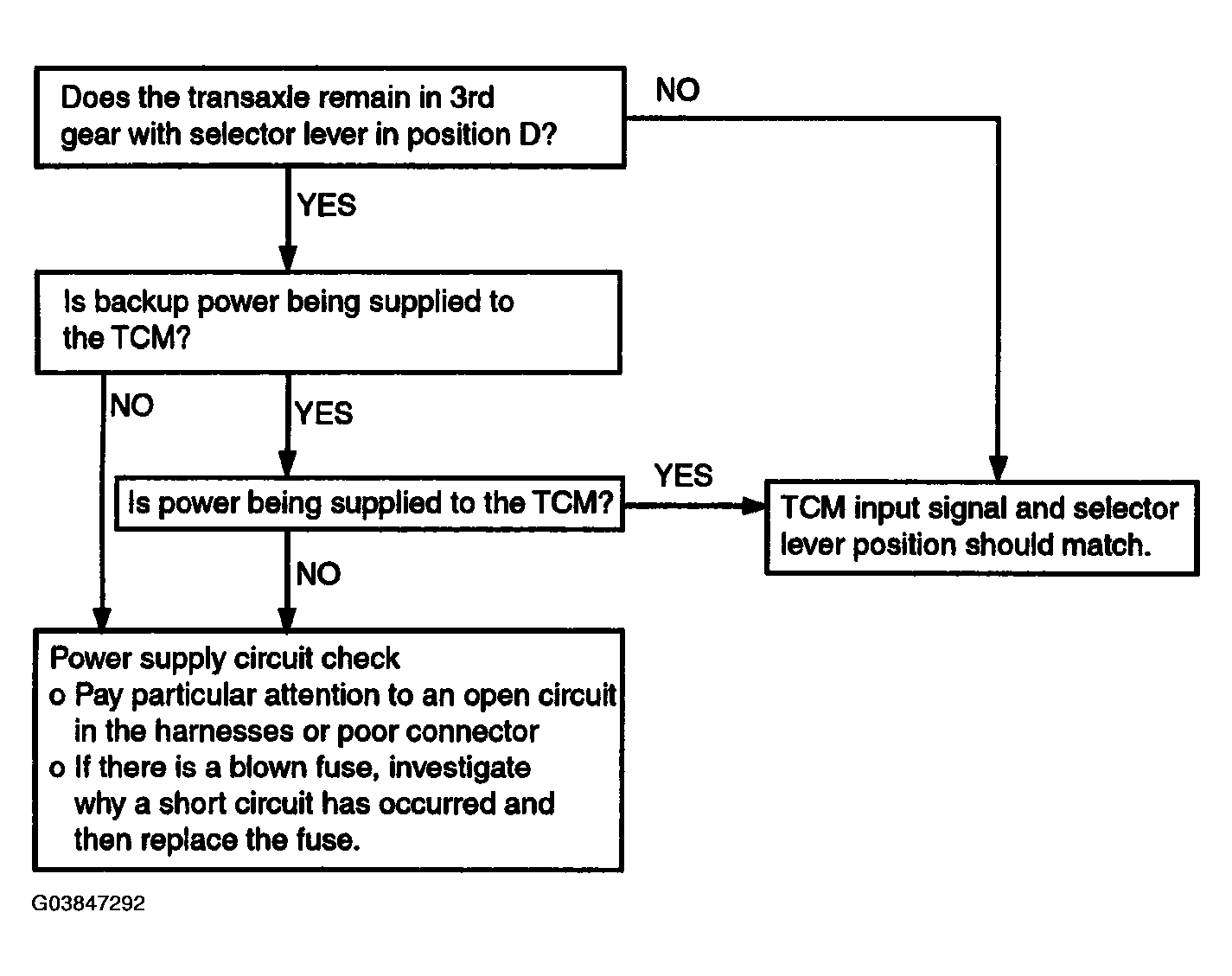

Fig 1: Trouble Symptoms - Inspection Procedure 13 Flow Chart
G03847292Courtesy of HYUNDAI MOTOR CO.
