Inspection Procedure 10

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 10

Shocks and running up Probable cause
If shocks occur when driving due to upshifting or downshifting and the transaxle speed becomes higher than the engine speed, the cause is probably abnormal line pressure or a malfunction of a solenoid valve, oil pump, valve body or of a brake or clutch.
  • Abnormal line pressure
  • Malfunction of each solenoid valve
  • Malfunction of the oil pump
  • Malfunction of the valve body
  • Malfunction of each brake or each clutch

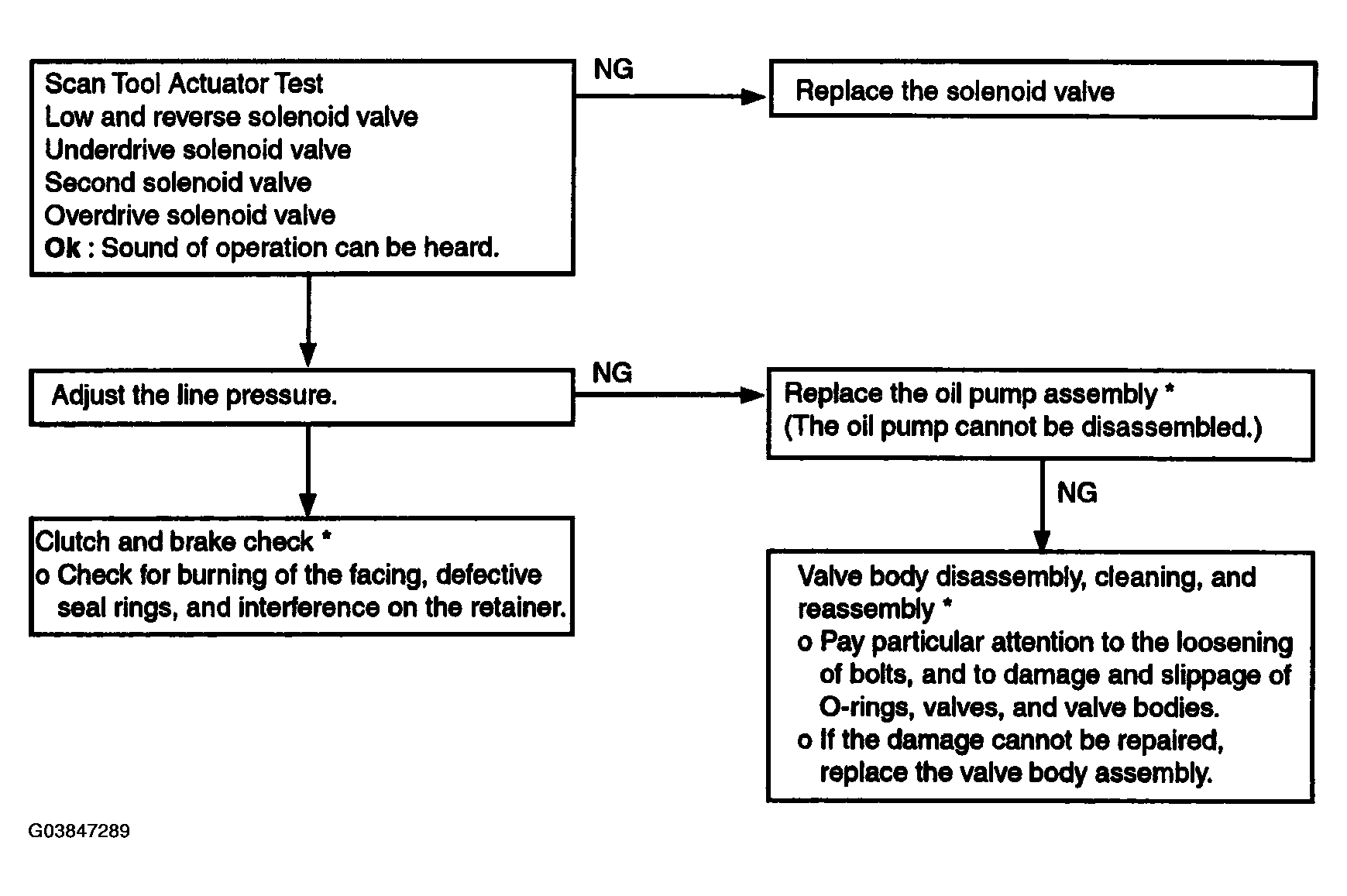

Fig 1: Trouble Symptoms - Inspection Procedure 10 Flow Chart
G03847289Courtesy of HYUNDAI MOTOR CO.
