Automatic Transaxle Hydraulic Circuit: First

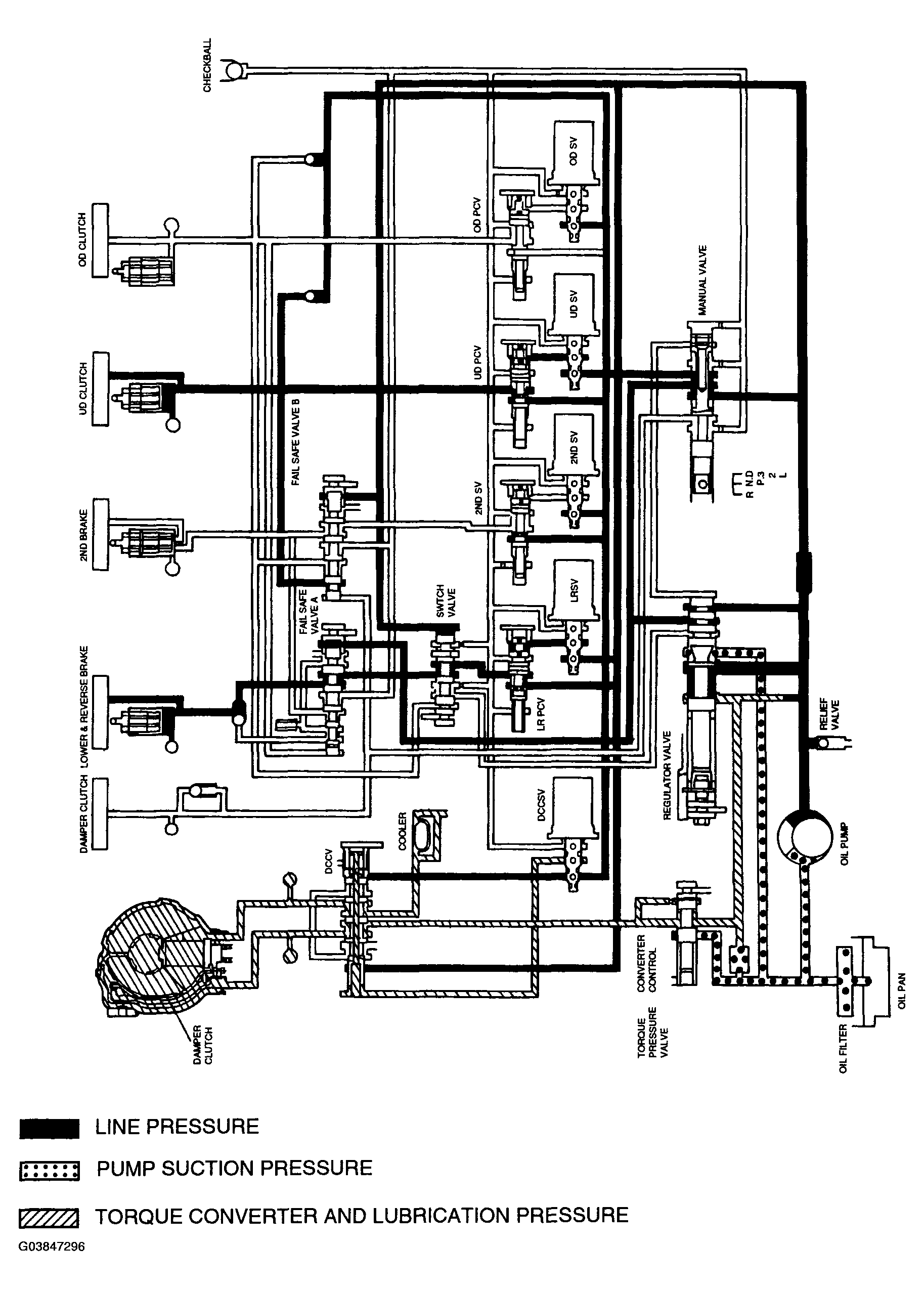

Fig 1: Automatic Transaxle Hydraulic Diagram - First

G03847296

Courtesy of HYUNDAI MOTOR CO.
