Battery Test Procedure

1. Connect the tester to the battery.
   • Red clamp to battery positive (+) terminal.
   • Black clamp to battery negative (-) terminal.

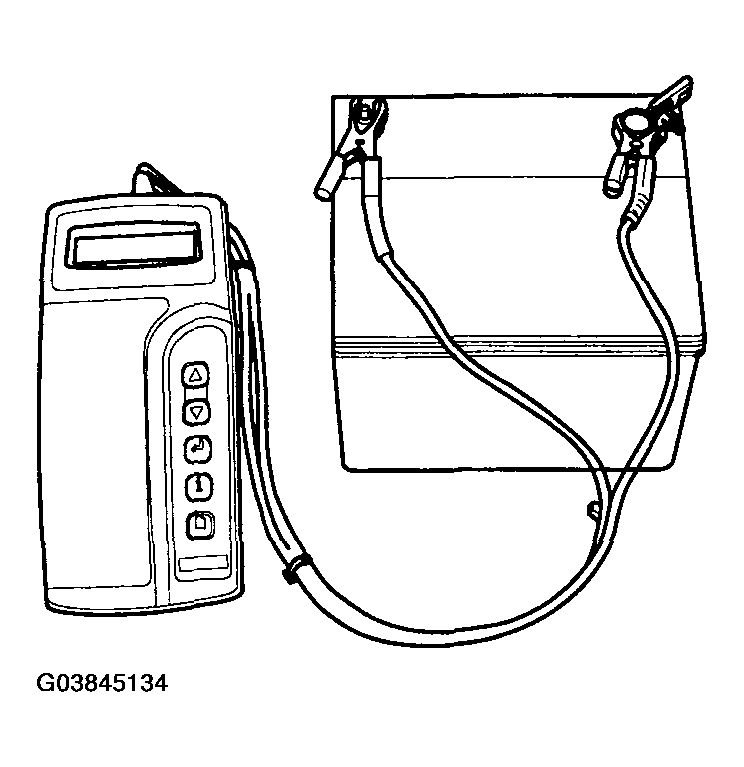

     Fig 1: Connecting Tester To Battery

     Courtesy of HYUNDAI MOTOR CO.
   CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
2. The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE".

   Make your selection by pressing the arrow buttons; then press ENTER.

   Fig 2: Displaying CHOOSE TEST IN - VEHICLE

   Courtesy of HYUNDAI MOTOR CO.
3. Choose either CCA or CCP and press the ENTER button.

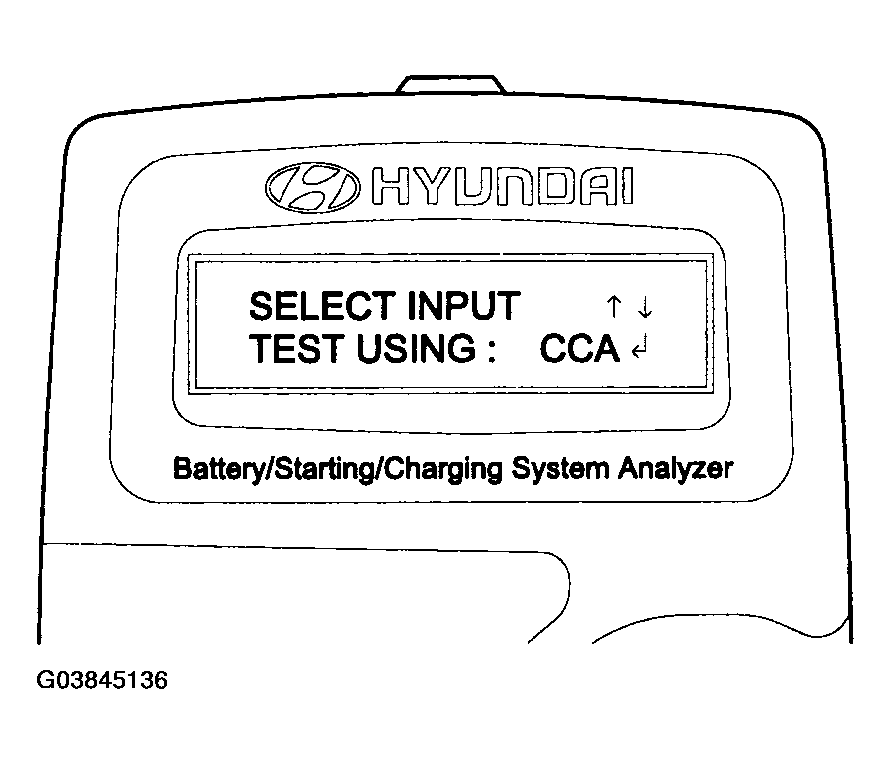

   Fig 3: Displaying SELECT INPUT TEST USING: CCA

   Courtesy of HYUNDAI MOTOR CO.
   NOTE:

   • CCA: Cold cranking amps, is an SAE specification for cranking batteries at 0°F (-18°C).
   • CCP: Cold cranking power, is an SAE specification for korean manufacturers for cranking batteries at 0°F (-18°C)
4. Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.
   Fig 4: Displaying SET RATING 660 CCA

   Courtesy of HYUNDAI MOTOR CO.
   NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on the battery label.
5. The tester (Micro 570) displays battery test results including voltage and battery ratings.

   A relevant action must be taken according to the test results by referring to the battery test results as shown in BATTERY TEST RESULTS CHART  .

   Fig 5: Displaying GOOD BATTERY

   Courtesy of HYUNDAI MOTOR CO.
6. To conduct starter test, continuously, press ENTER.

BATTERY TEST RESULTS
