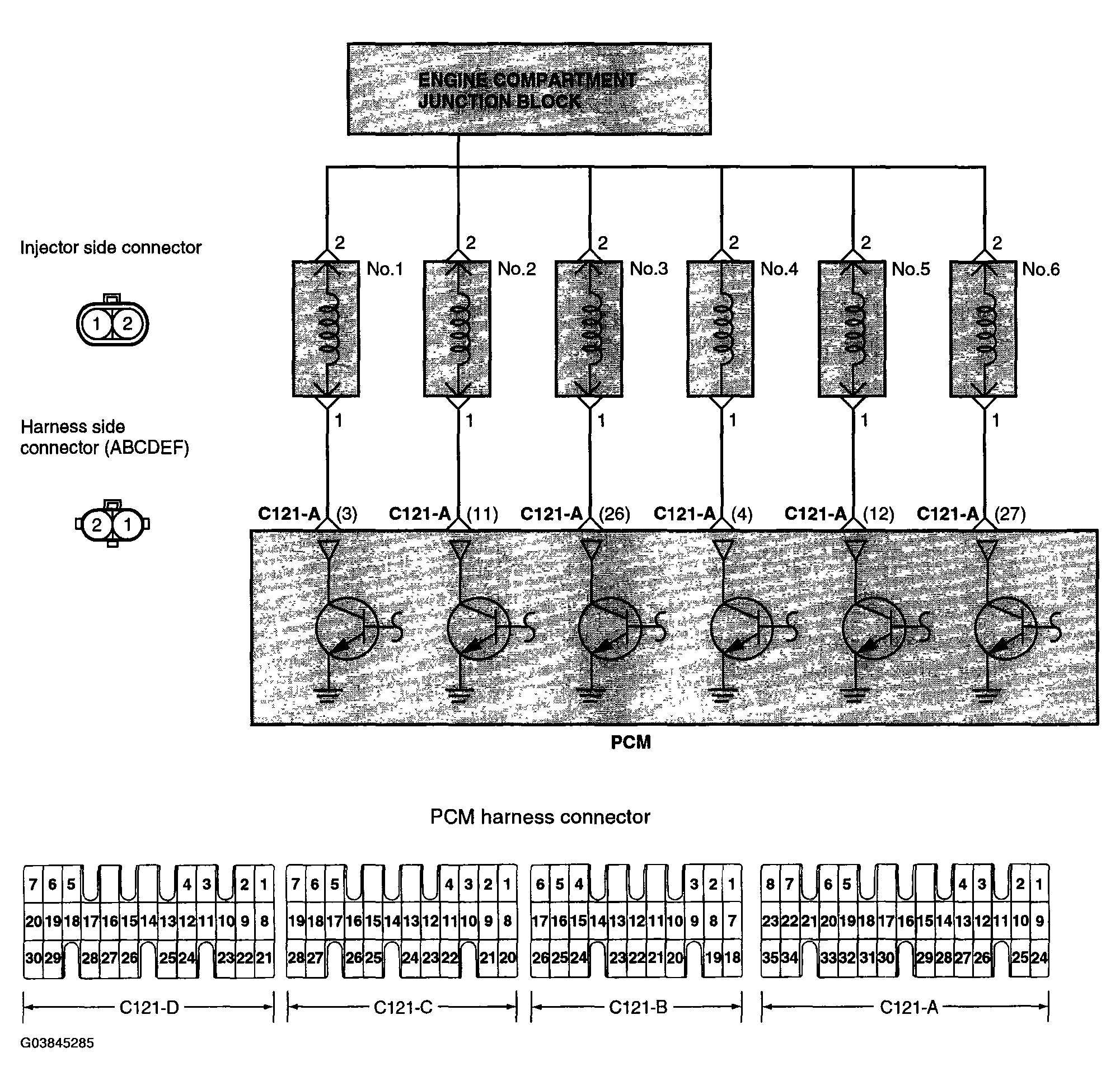

Home >> Hyundai >> 2005 >> Santa Fe LX, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6CU-GSL 3.5) >> Gasoline Engine Control System >> Injector >> Injector >> Circuit Diagram
