Accelerator Pedal: Removal

  1. Remove the bushing and inner cable of the accelerator arm.
  2. Pull the left side of the accelerator pedal toward you, and then remove the accelerator pedal from the accelerator arm.
    Fig 1: Pulling Left Side Of Accelerator Pedal
    G03845905Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the bolts of the accelerator arm bracket and remove.

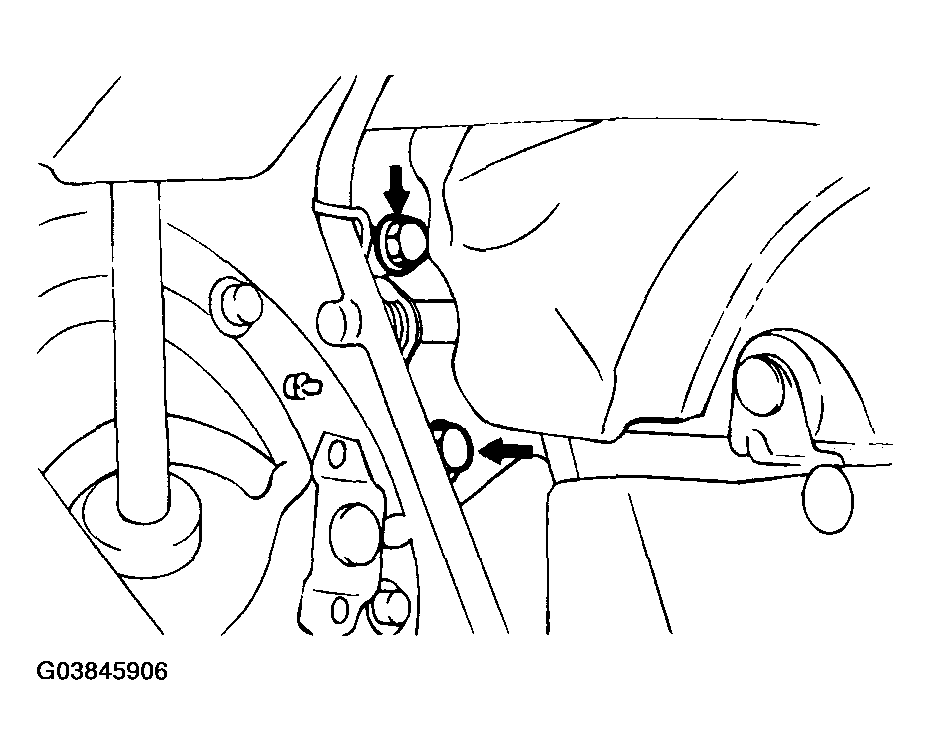

    Fig 2: Loosening Accelerator Arm Bracket Bolts
    G03845906Courtesy of HYUNDAI MOTOR CO.
