Santa Fe LX, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
System Block Diagram
System Block Diagram

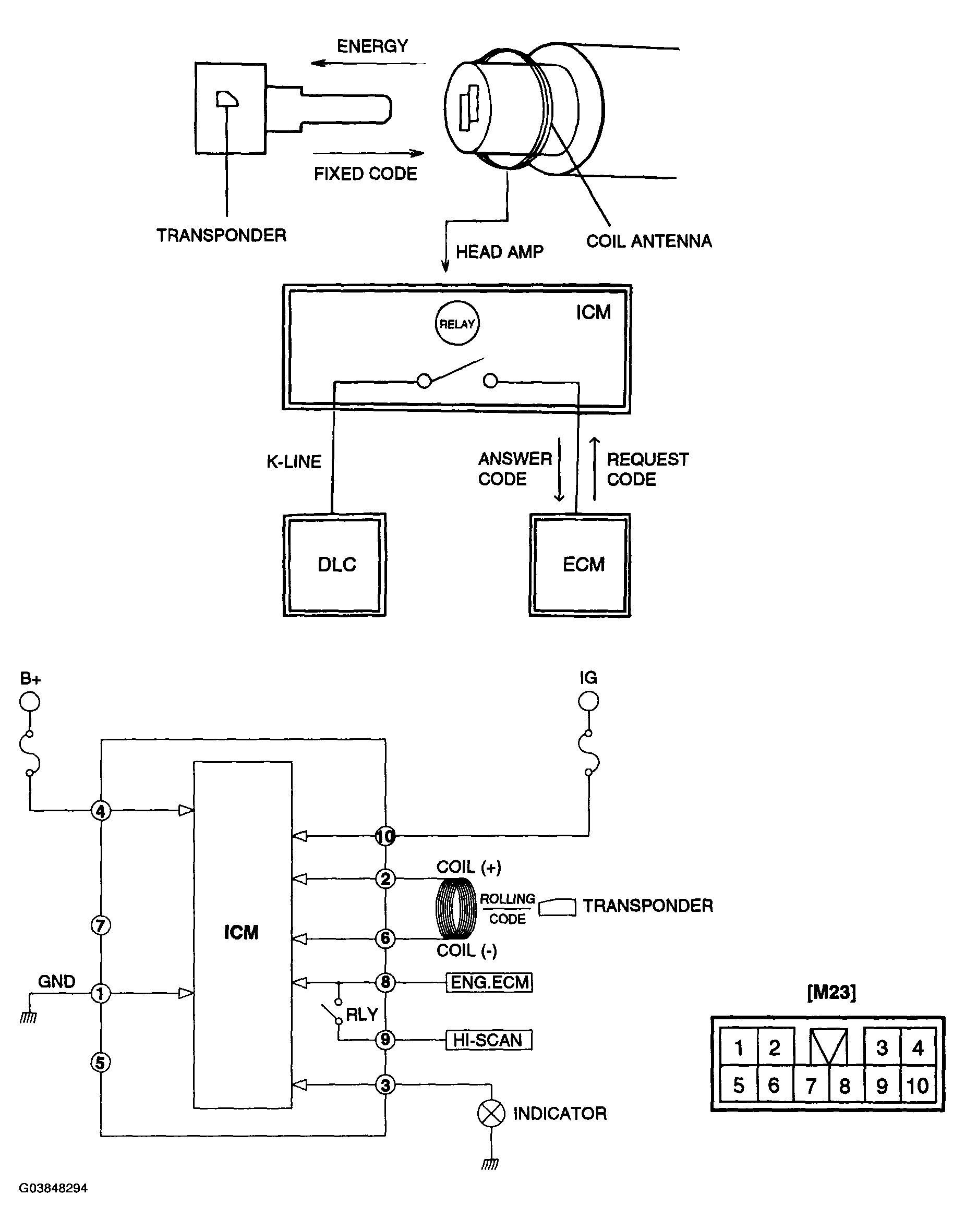

Fig 1: Immobilizer Control System Block Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
