Immobilizer Control Module: Removal

Remove the ash tray and then remove the 4 screws holding the center facia panel.

Fig 1: Locating Ash Tray Screws
Courtesy of HYUNDAI MOTOR CO.

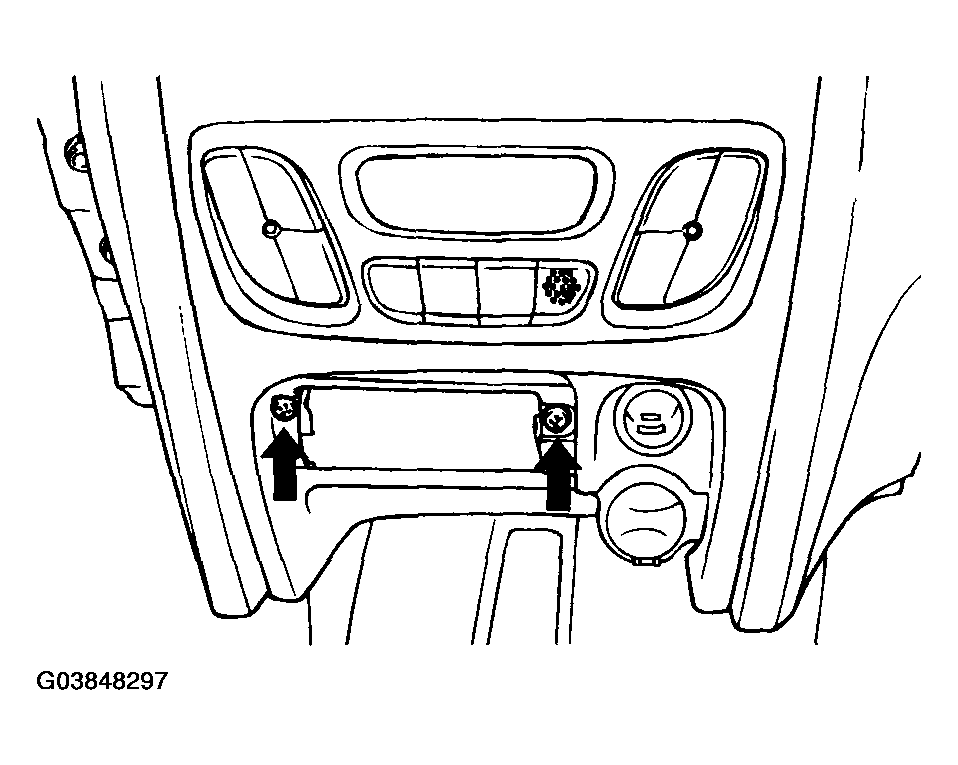

Fig 2: Locating Center Facia Panel Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the center facia panel and disconnect the connectors.
Remove the immobilizer control module (ICM) from the center support bracket.

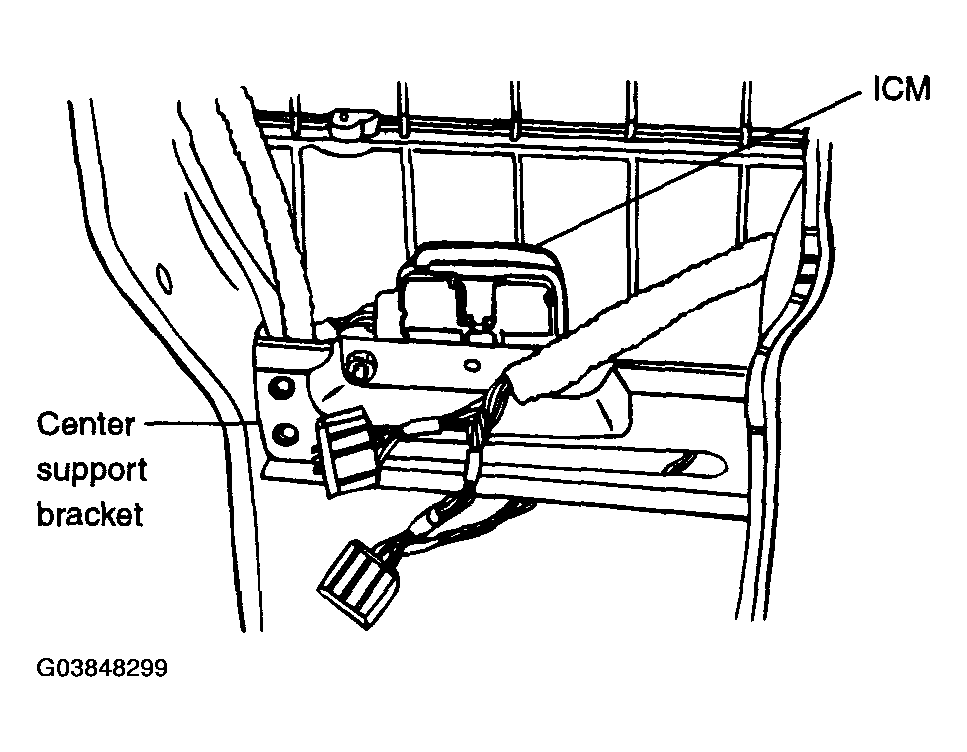

Fig 3: Identifying ICM
Courtesy of HYUNDAI MOTOR CO.
