Key Registration And Correction

In cases when the master key is lost or where a new set of master keys need to be produced, it can be achieved using two methods.

1. Using ID key

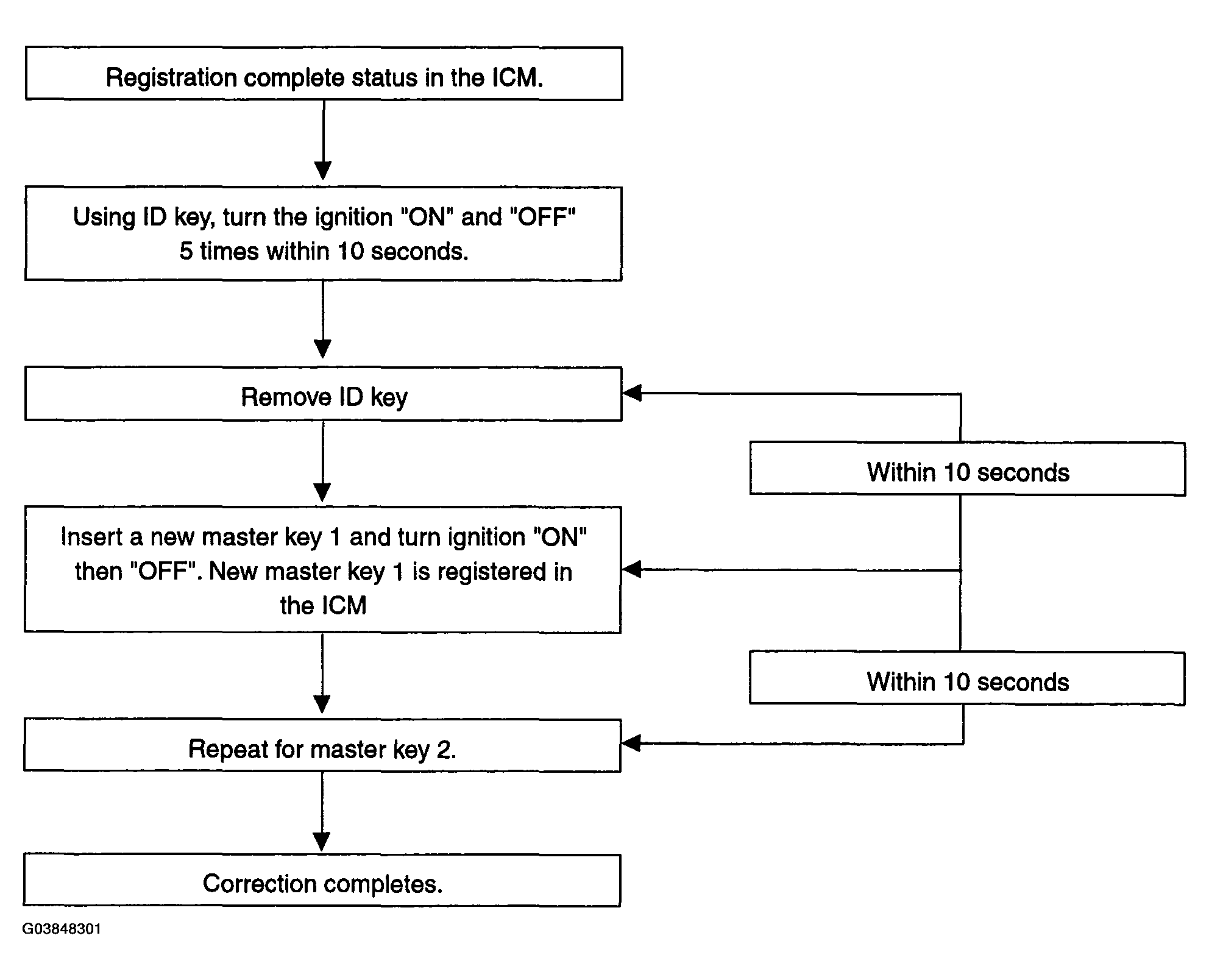

   Fig 2: Registration Correction For Master Keys (Using ID Key) Flow Chart

   Courtesy of HYUNDAI MOTOR CO.
2. Using password

   When the customers lost the ID key, new master keys can be registered by using Hi-scan only. ID key can not be corrected and reproduced.

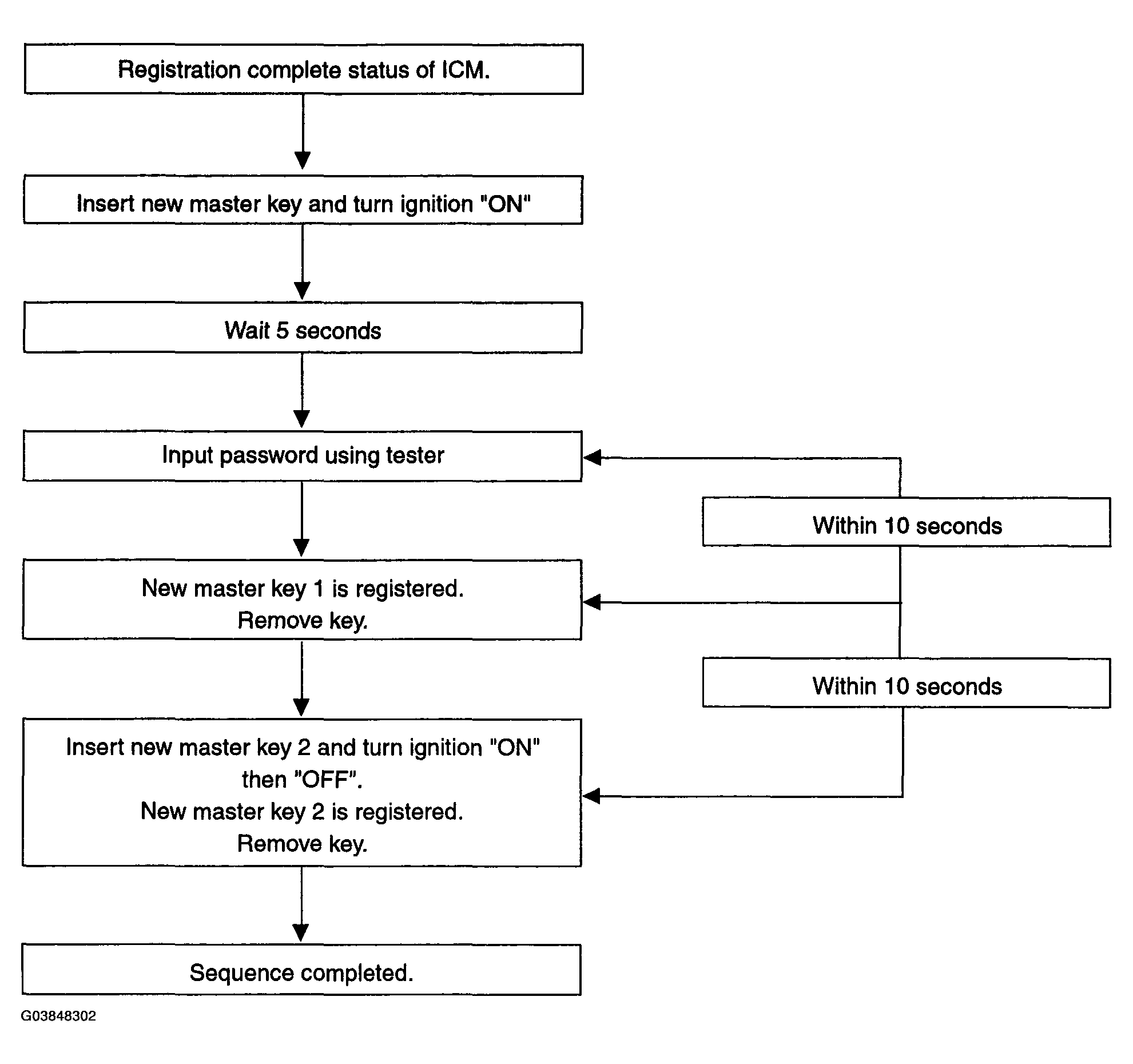

   Fig 3: Registration Correction For Master Keys (Using Password) Flow Chart

   Courtesy of HYUNDAI MOTOR CO.
   NOTE: Once the password is mis-registered, it is impossible to register new password during 10 seconds regardless of ignition ON/OFF.
   When the new master keys have been registered, the codes for existing master keys are all cleared.
   The password should consist of 4 numbers among ten (0-9) numbers.
