Hyundai
>>
2005
>>
Santa Fe LX, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Immobilizer Control Module
>>
ICM Terminal Connection
ICM Terminal Connection

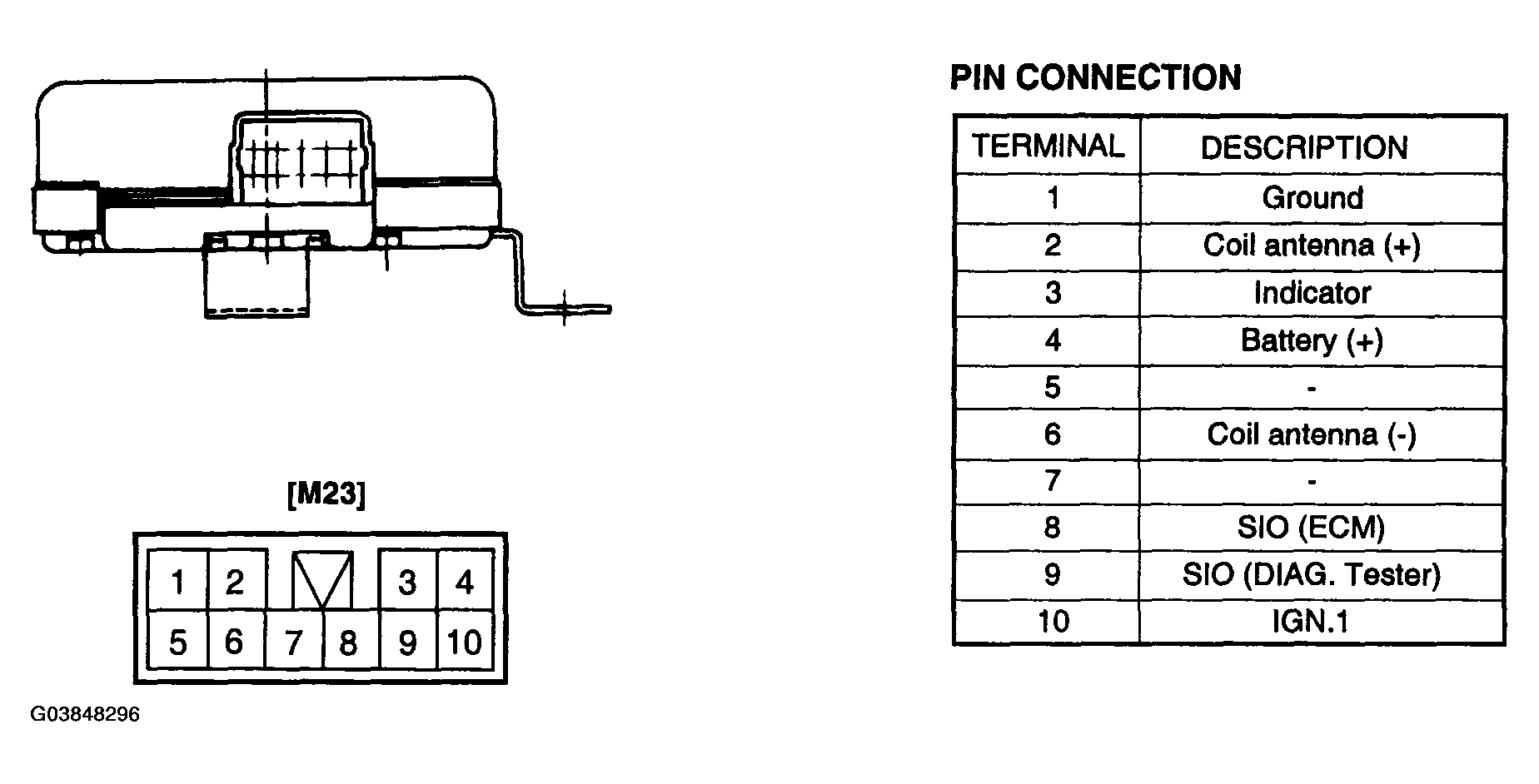

Fig 1: Identifying ICM Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
