Home >> Hyundai >> 2005 >> Santa Fe LX, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Immobilizer Control System >> Components

Immobilizer Control System: Components

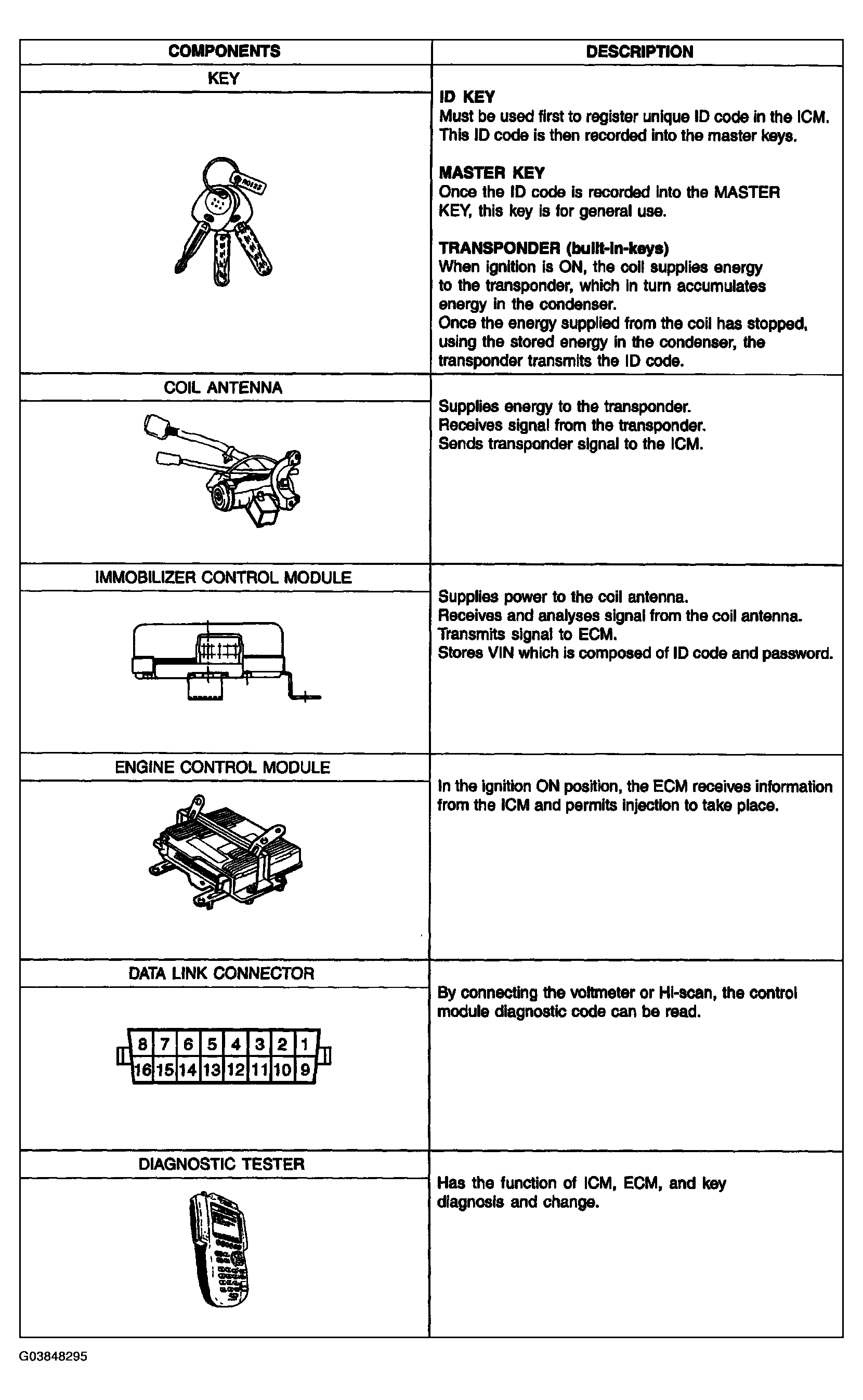

Fig 1: Identifying Immobilizer Control System Components

G03848295

Courtesy of HYUNDAI MOTOR CO.
