Code No. P0707 Transaxle range switch circuit

DIAGNOSTIC TROUBLE CODE NO. P0707 - TRANSAXLE RANGE SWITCH CIRCUIT

Code No. P0707 Transaxle range switch circuit Probable cause
The TCM (PCM) sets this code when the Transaxle Range Switch has no output signal for more than 30 seconds.
  • Open or short in circuit
  • Faulty TRANSAXLE RANGE SWITCH
  • Faulty TCM (PCM)

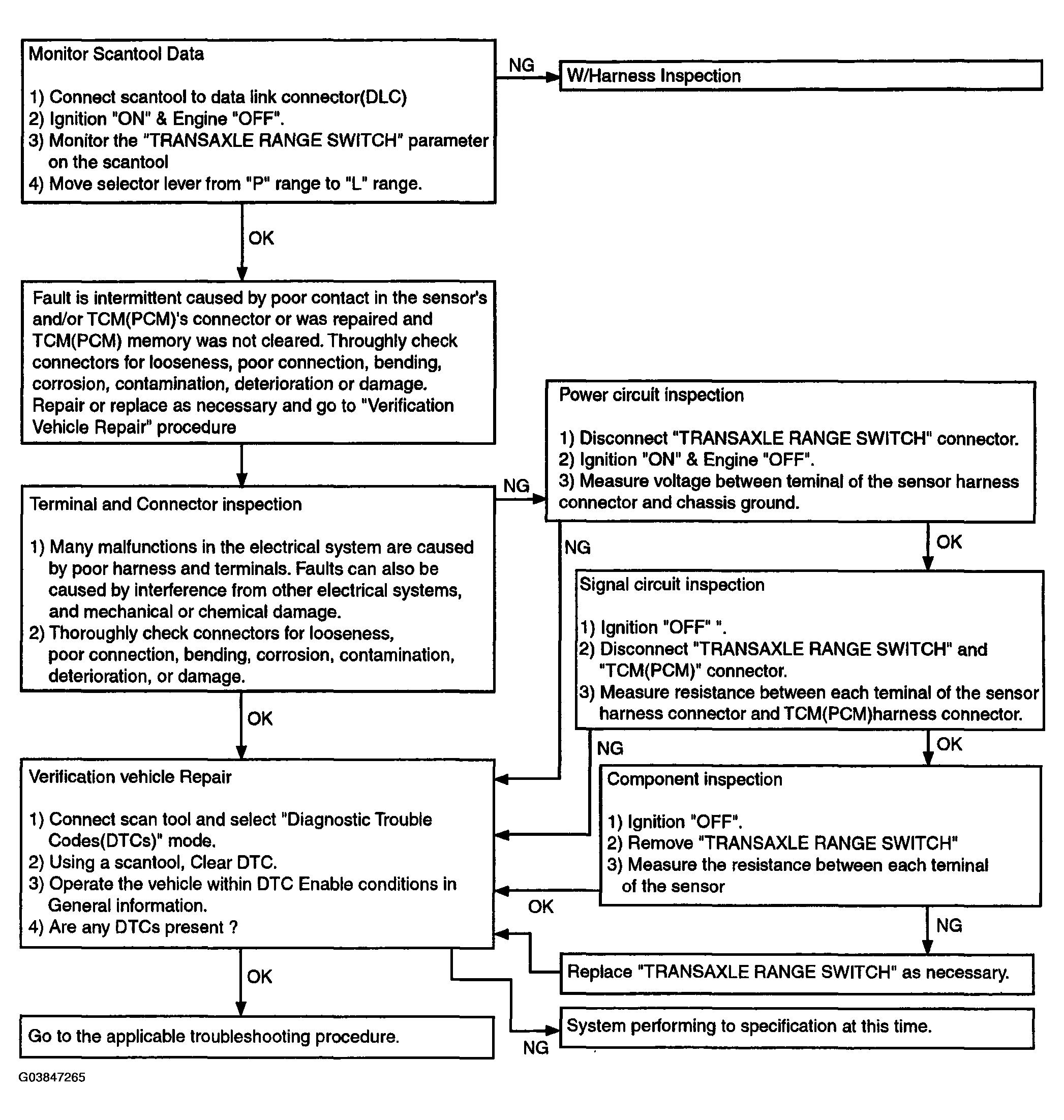

Fig 1: Diagnostic Trouble Code Flow Chart - P0707
G03847265Courtesy of HYUNDAI MOTOR CO.
