Code No. P0605 EEPROM Abnormal

DIAGNOSTIC TROUBLE CODE NO. P0605 - EEPROM ABNORMAL

Code No. P0605 EEPROM Abnormal Probable cause
TCU saves "LEARNING VALUE" and keeps it at certain value. Through this process, "LEARNING VALUE" is protected from being erased at disconnecting battery cable and maintaining related components.
  • PCM/TCM

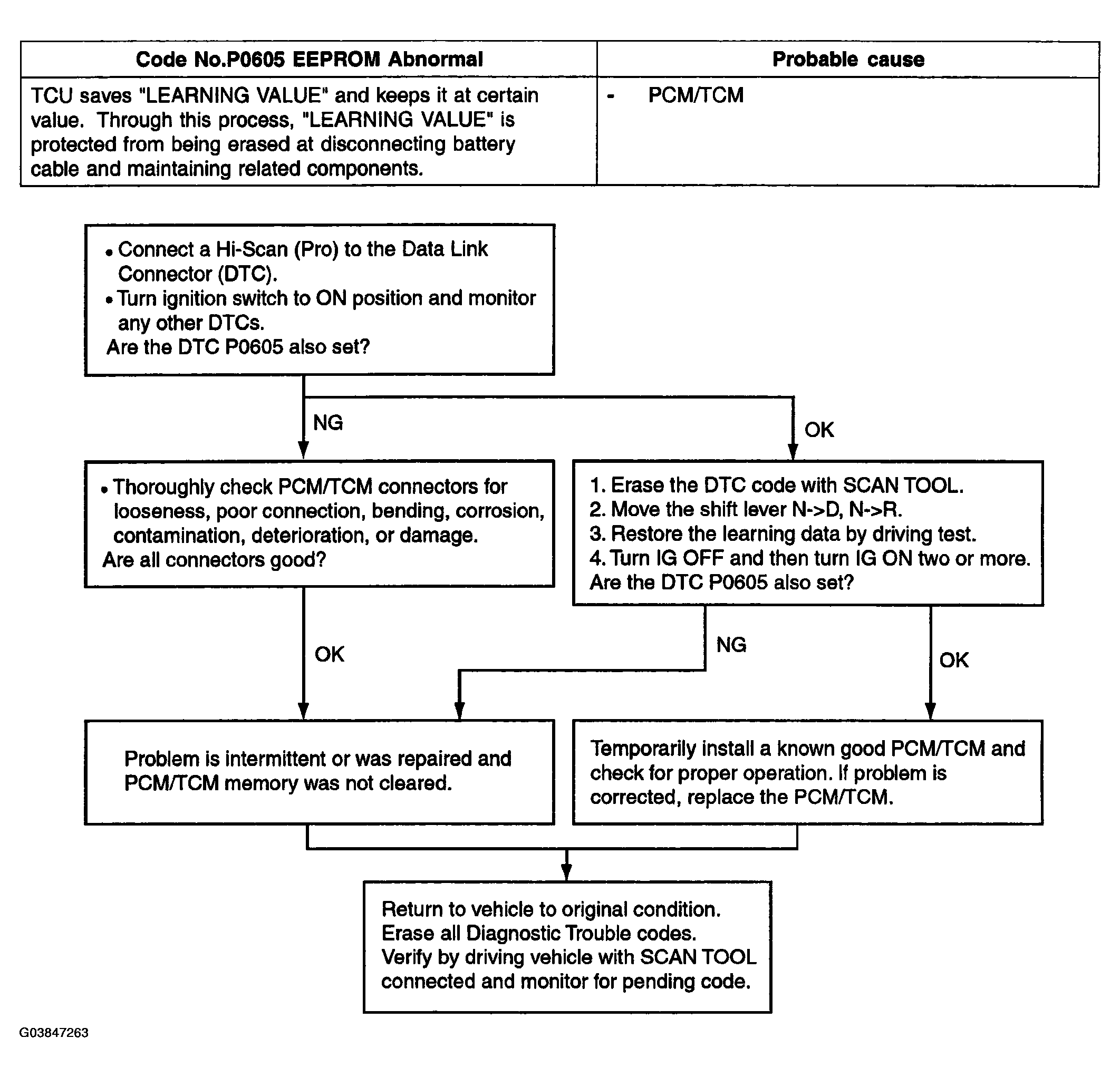

Fig 1: Diagnostic Trouble Code Flow Chart - P0605
G03847263Courtesy of HYUNDAI MOTOR CO.
