Automatic Transaxle Hydraulic Circuit: Third

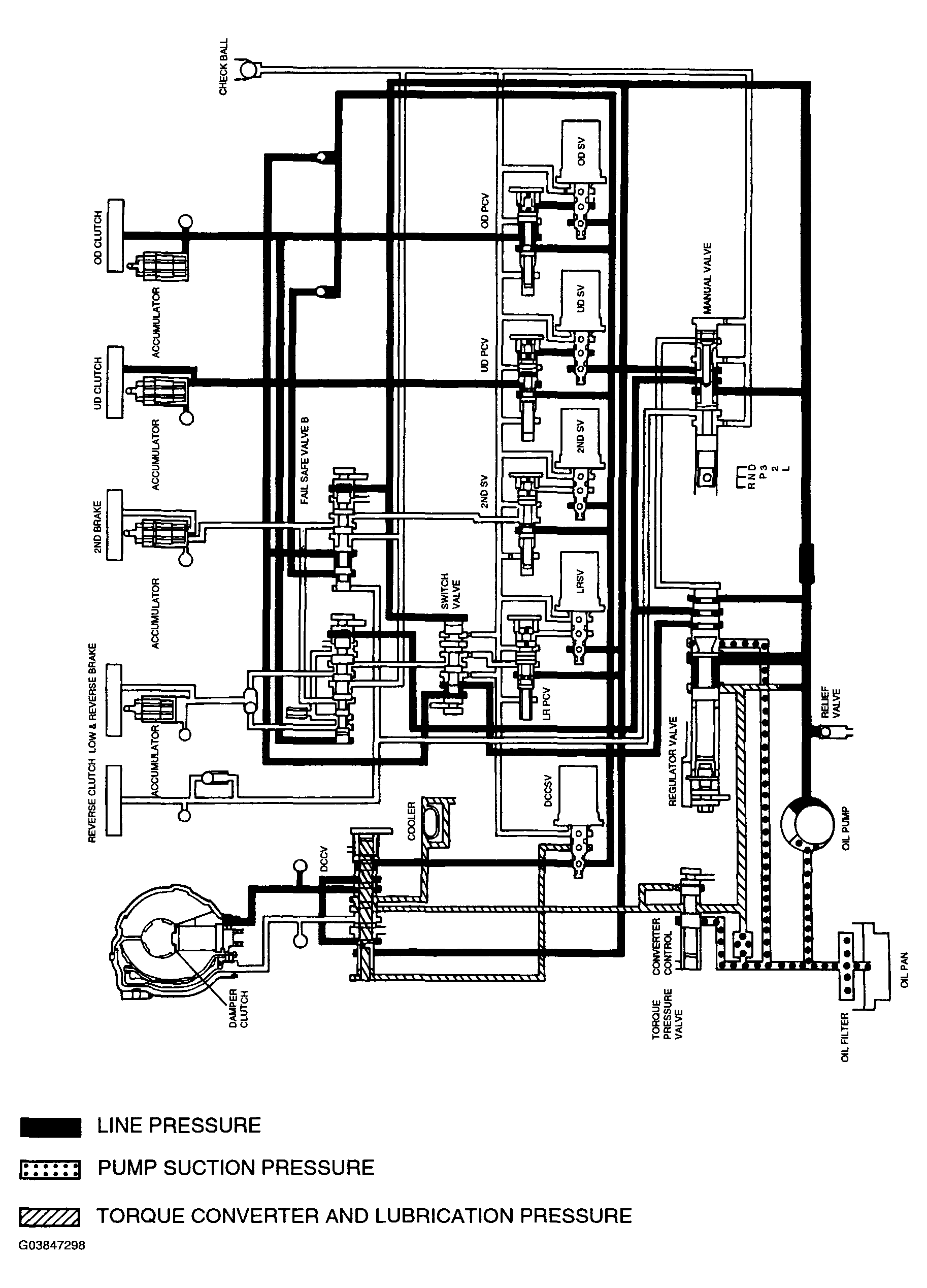

Fig 1: Automatic Transaxle Hydraulic Diagram - Third

G03847298

Courtesy of HYUNDAI MOTOR CO.
