Special Tools
SPECIAL TOOLS SPECIFICATIONS
| Tool (Number and Name) | Illustration | Use |
|---|---|---|
| 09216-121000 Mounting bushing remover and installer |
Removal and installation of the front upper arm bushing and lower arm bushing (Used with 09551-31000) | |
| 09216-21300 Mounting bushing remover and installer |
Removal and installation of the trailing arm bushing (Used with 09552-38100) | |
| 09529-21000 Wheel alignment gauge attachment |
Measurement of the wheel alignment | |
| 09532-11600 Preload socket |
Measurement of the stabilizer bar link ball joint preload (Used with torque wrench) | |
| 09532-3A000 Preload socket |
Measurement of the front lower arm ball joint preload (Used with torque wrench) | |
| 09545-28100 Lower arm bushing remover and installer |
Removal and installation of the rear upper arm bushing and lower arm bushing (Used with 09552-25000) | |
| 09551-31000 Upper arm bushing remover and installer |
Removal and installation of the front lower arm bushing (Used with 09216-21000) | |
| 09552-25000 Suspension bushing remover and installer |
Removal and installation of the rear upper arm bushing and lower arm bushing (Used with 09545-28100) | |
| 09552-38100 Trailing arm bushing remover and installer |
Removal and installation of rear trailing arm bushing (Used with 09216-21300) | |

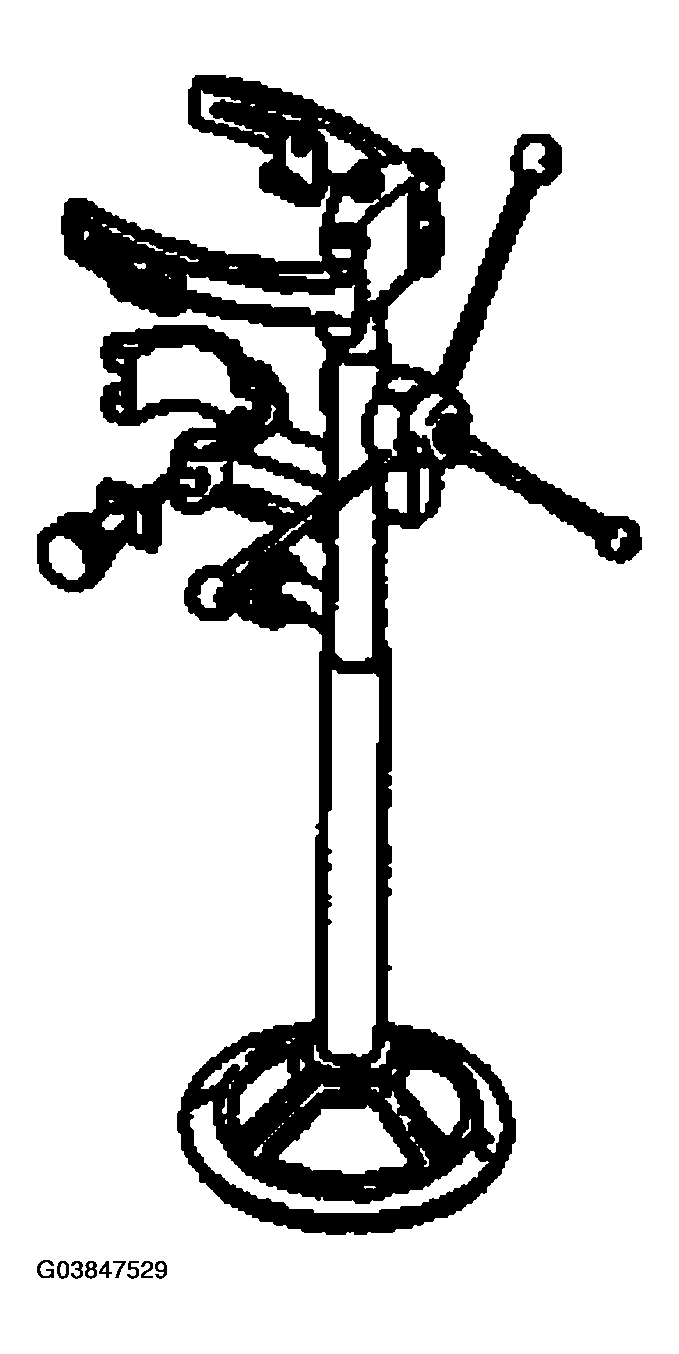

| 09546-26000 Strut spring compressor |
Compression of the coil spring |
