Front Strut Assembly: Inspection: Disposal

  1. Fully extend the shock absorber rod.
  2. Drill a hole in the A section to remove gas from the cylinder.
    CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.

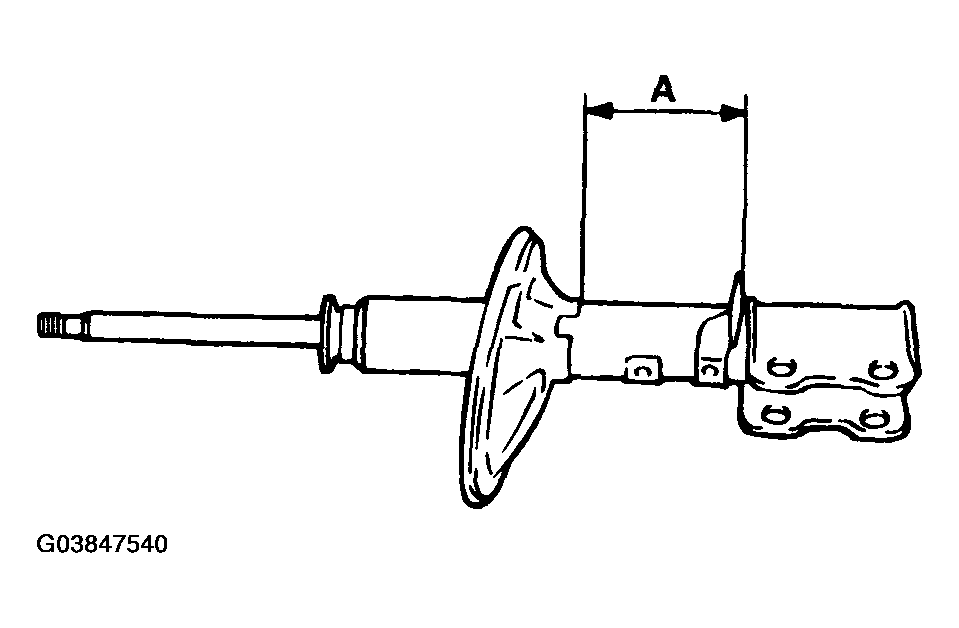

    Fig 1: Identifying "A" Section
    G03847540Courtesy of HYUNDAI MOTOR CO.
