Front Strut Assembly: Components

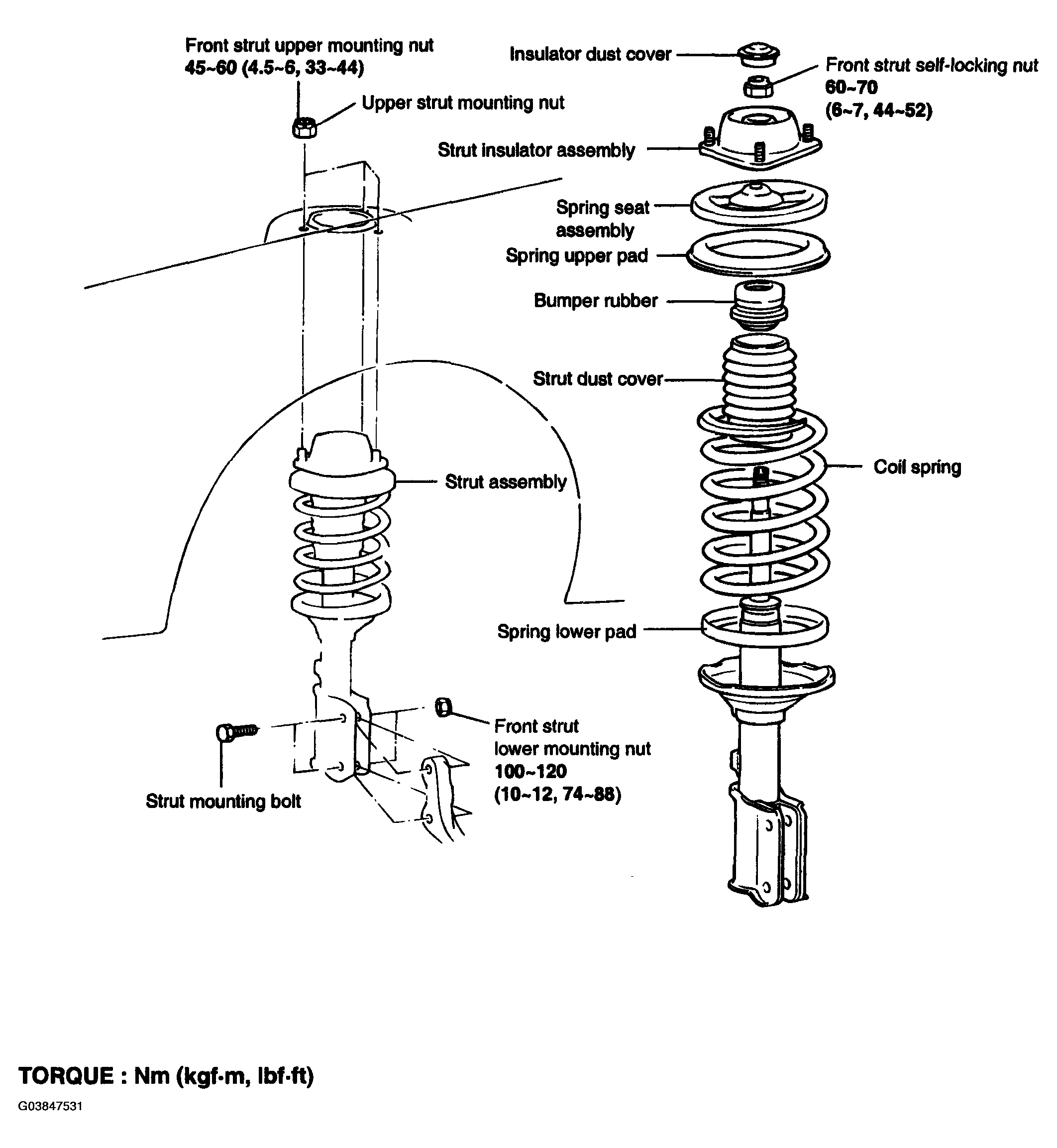

Fig 1: Identifying Front Strut Assembly Components

G03847531

Courtesy of HYUNDAI MOTOR CO.
