Front Lower Arm: Disassembly

  1. Using the special tools (09551-31000, 09216-21100), remove the lower arm bushing.

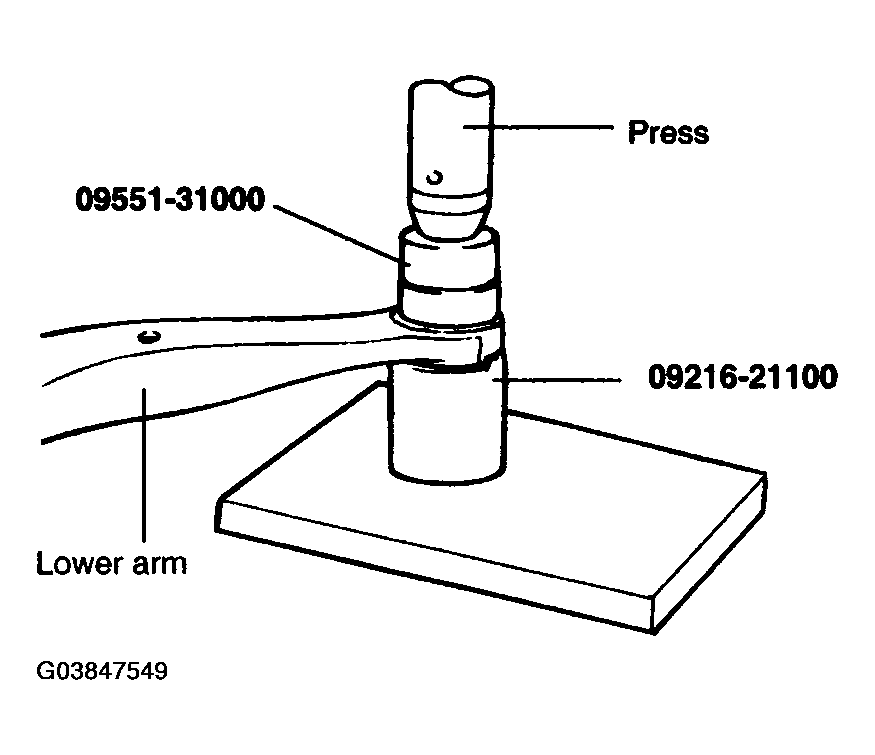

    Fig 1: Removing Lower Arm Bushing
    G03847549Courtesy of HYUNDAI MOTOR CO.
  2. Using a screwdriver, remove the dust cover from the lower arm ball joint.

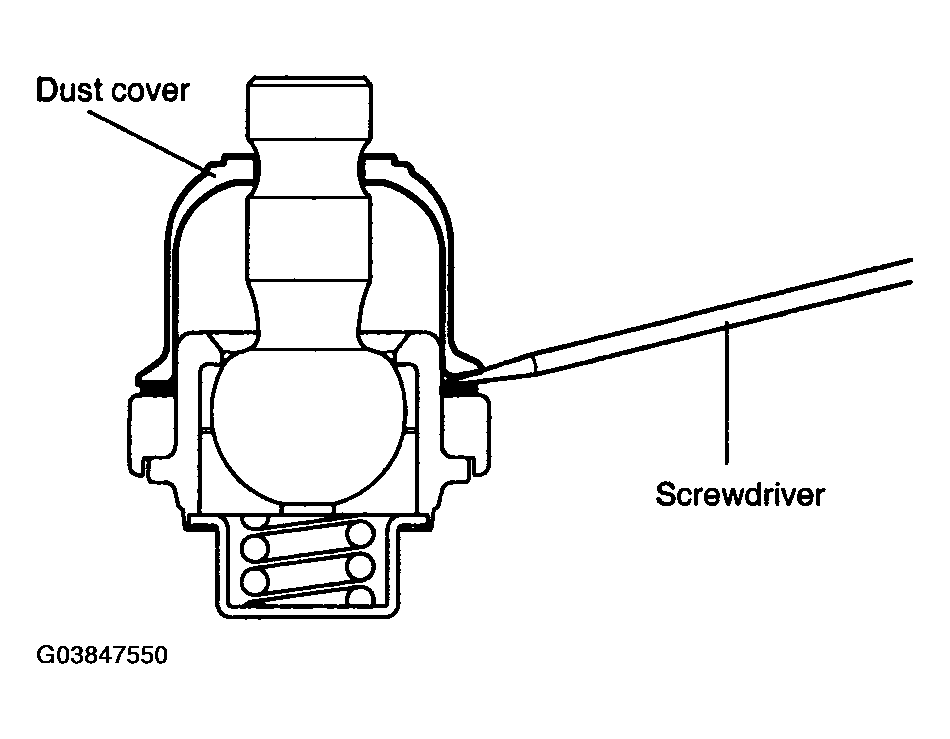

    Fig 2: Removing Dust Cover From Lower Arm Ball Joint
    G03847550Courtesy of HYUNDAI MOTOR CO.
  3. Remove the snap ring.
  4. Using a plastic hammer, remove the ball joint from the lower arm assembly.

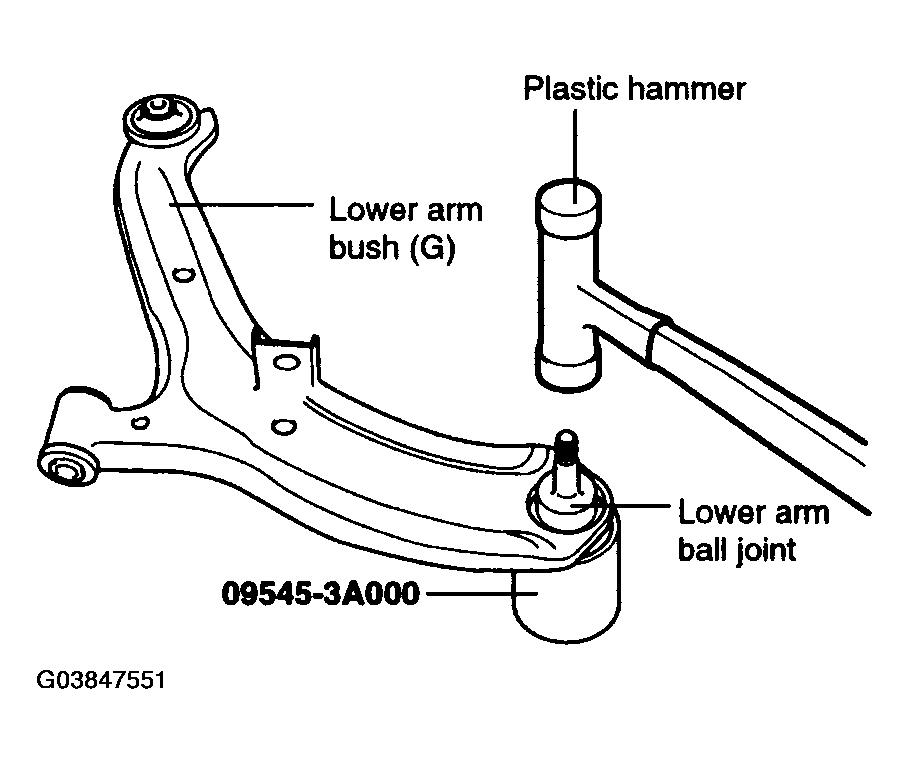

    Fig 3: Removing Ball Joint From Lower Arm Assembly
    G03847551Courtesy of HYUNDAI MOTOR CO.
