Home >> Hyundai >> 2005 >> Santa Fe LX, AWD >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Lower Arm >> Components

Front Lower Arm: Components

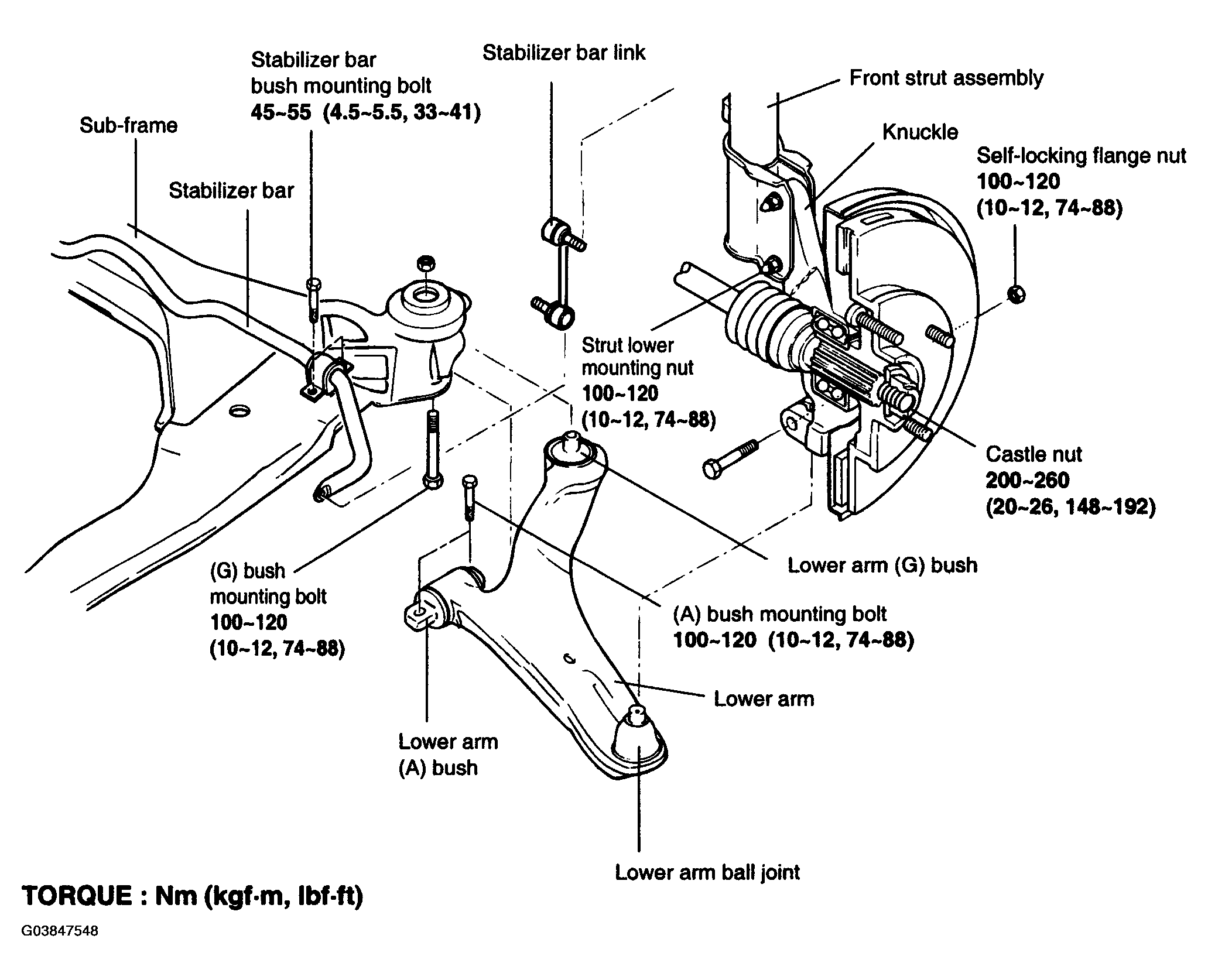

Fig 1: Identifying Front Lower Arm Components

G03847548

Courtesy of HYUNDAI MOTOR CO.
