Abs (Anti-Lock Brake System): Components

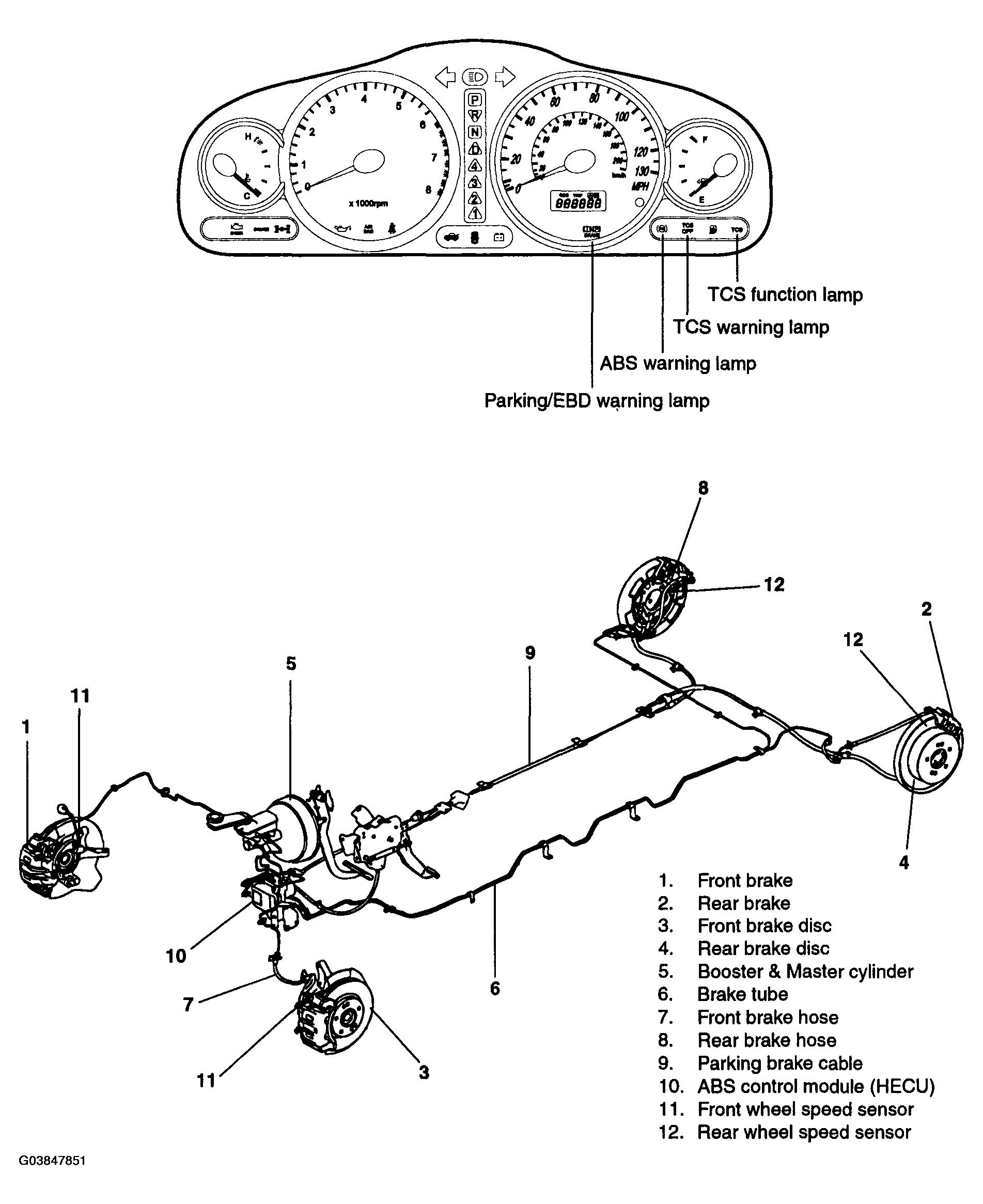

Fig 1: Identifying Anti-Lock Brake System Components

G03847851

Courtesy of HYUNDAI MOTOR CO.
