Home >> Hyundai >> 2005 >> Santa Fe LX, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Anti-Lock Braking System Wheel Speed Sensor >> Components

Anti-Lock Braking System Wheel Speed Sensor: Components

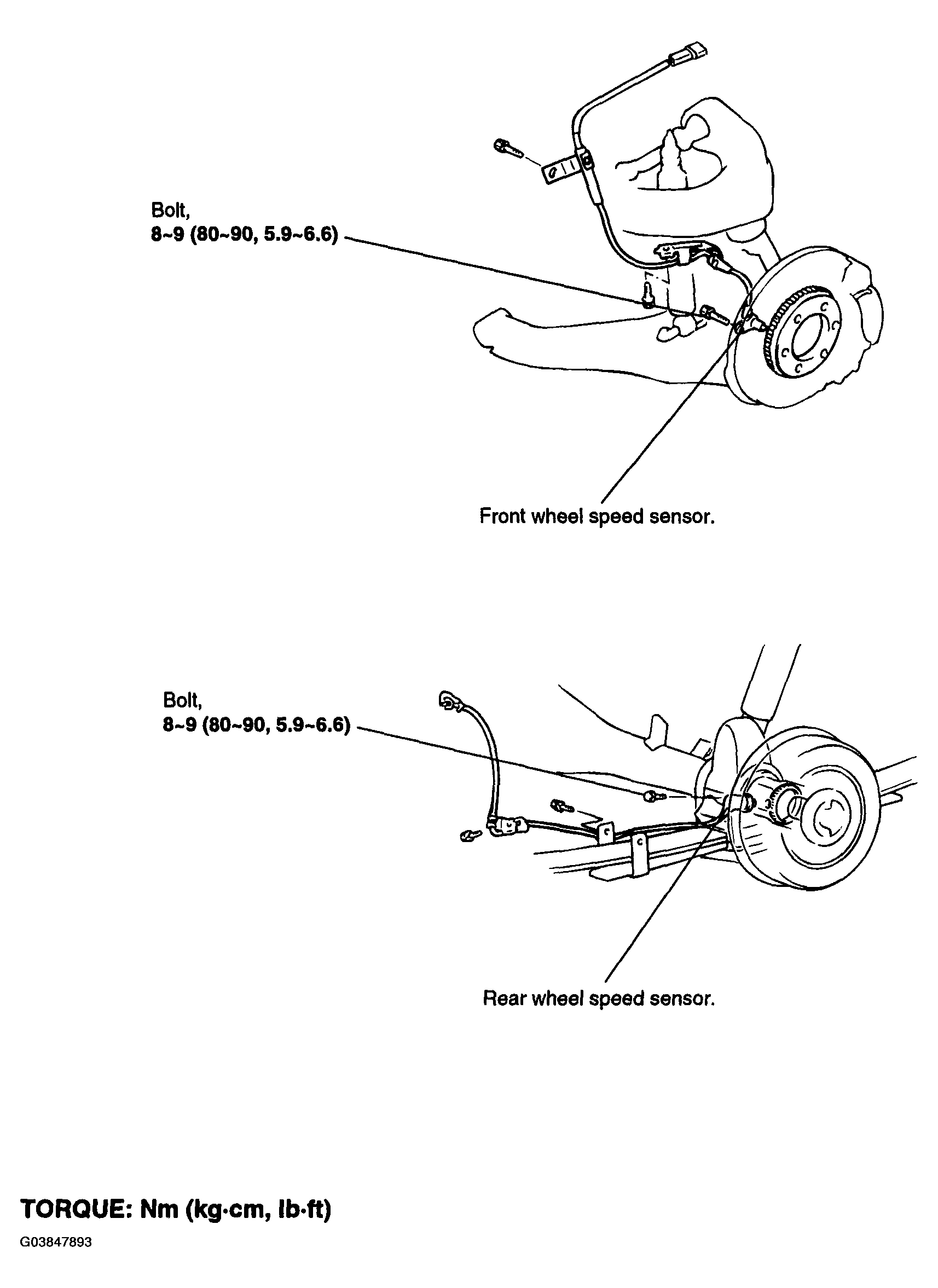

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Replacement Components With Torque Specifications

G03847893

Courtesy of HYUNDAI MOTOR CO.
