Brakes
>>
Traction Control
>>
Abs (Anti-Lock Brake System)
>>
Anti-Lock Braking System Control Module
>>
HECU External Diagram
HECU External Diagram

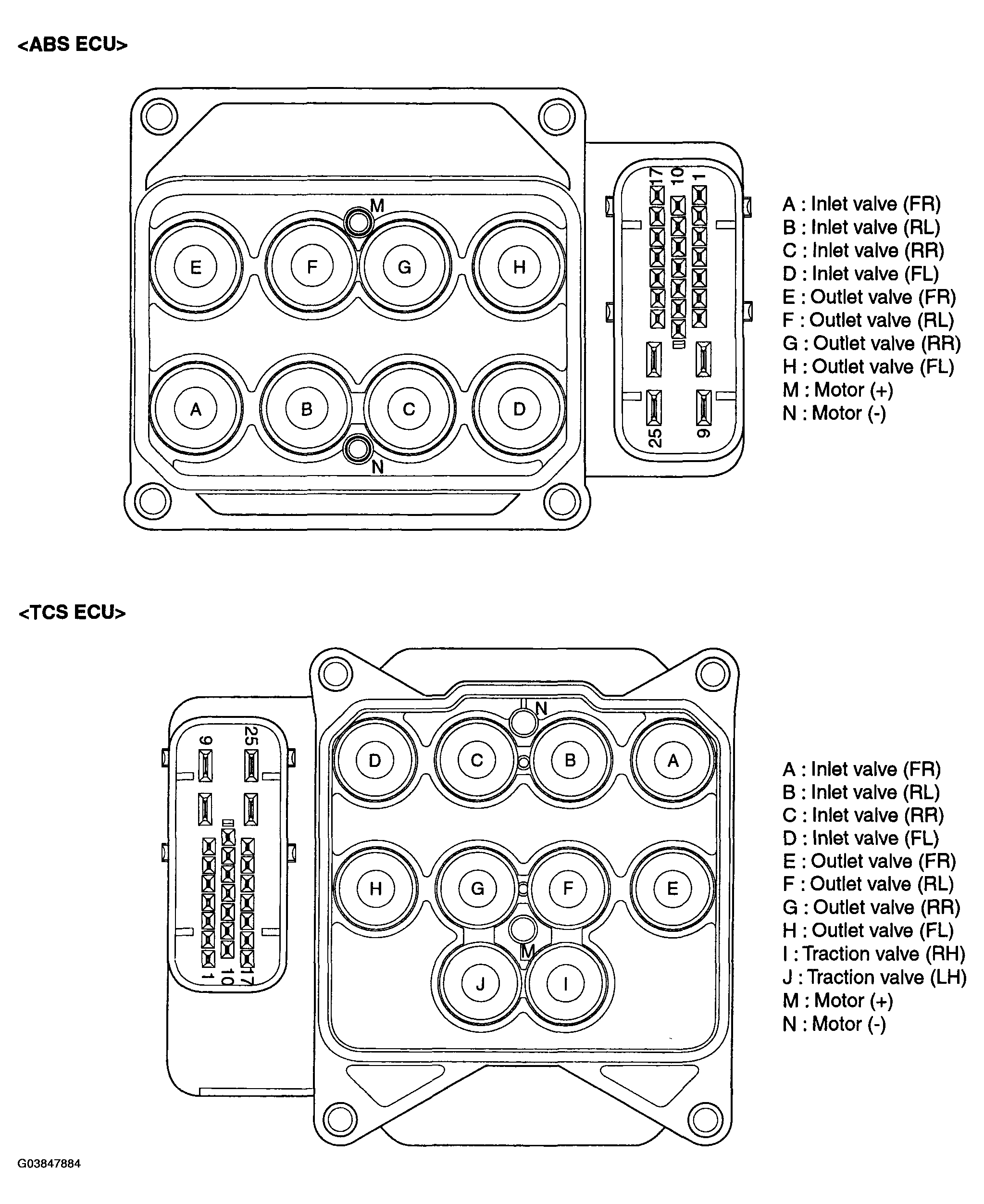

Fig 1: Identifying ECU Valves And Motor Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
