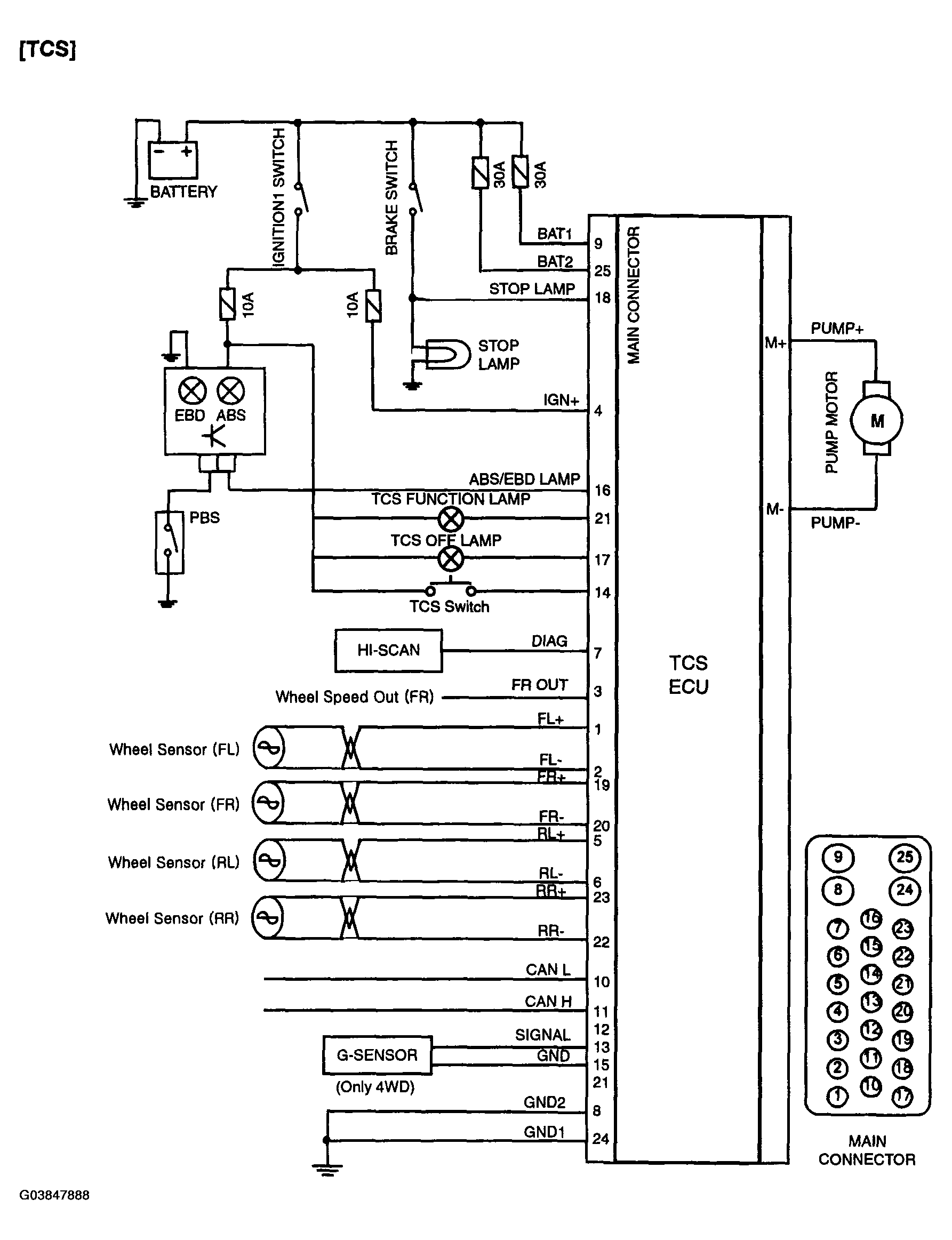

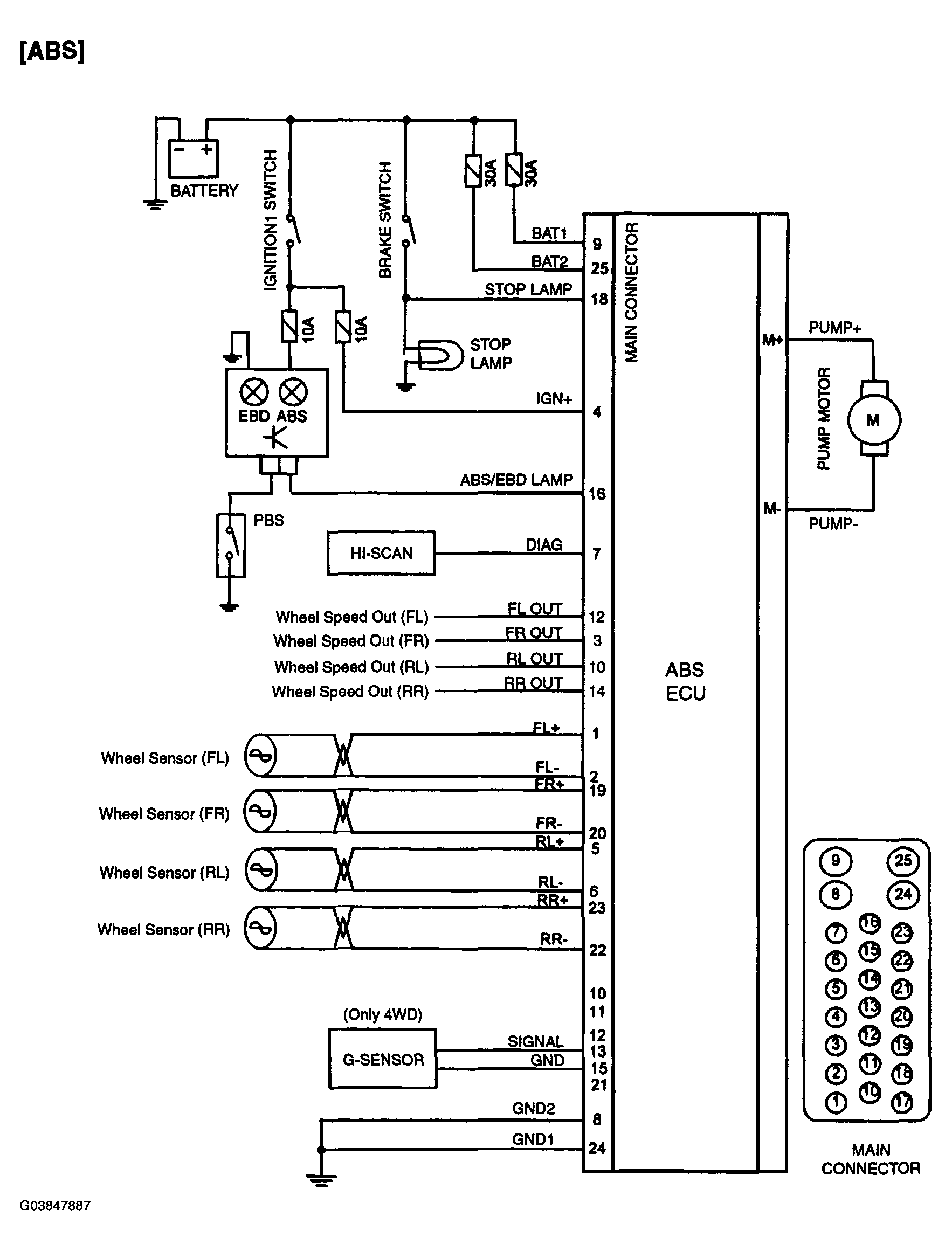

Home >> Hyundai >> 2005 >> Santa Fe LX, AWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Anti-Lock Braking System Control Module >> Circuit Diagram
