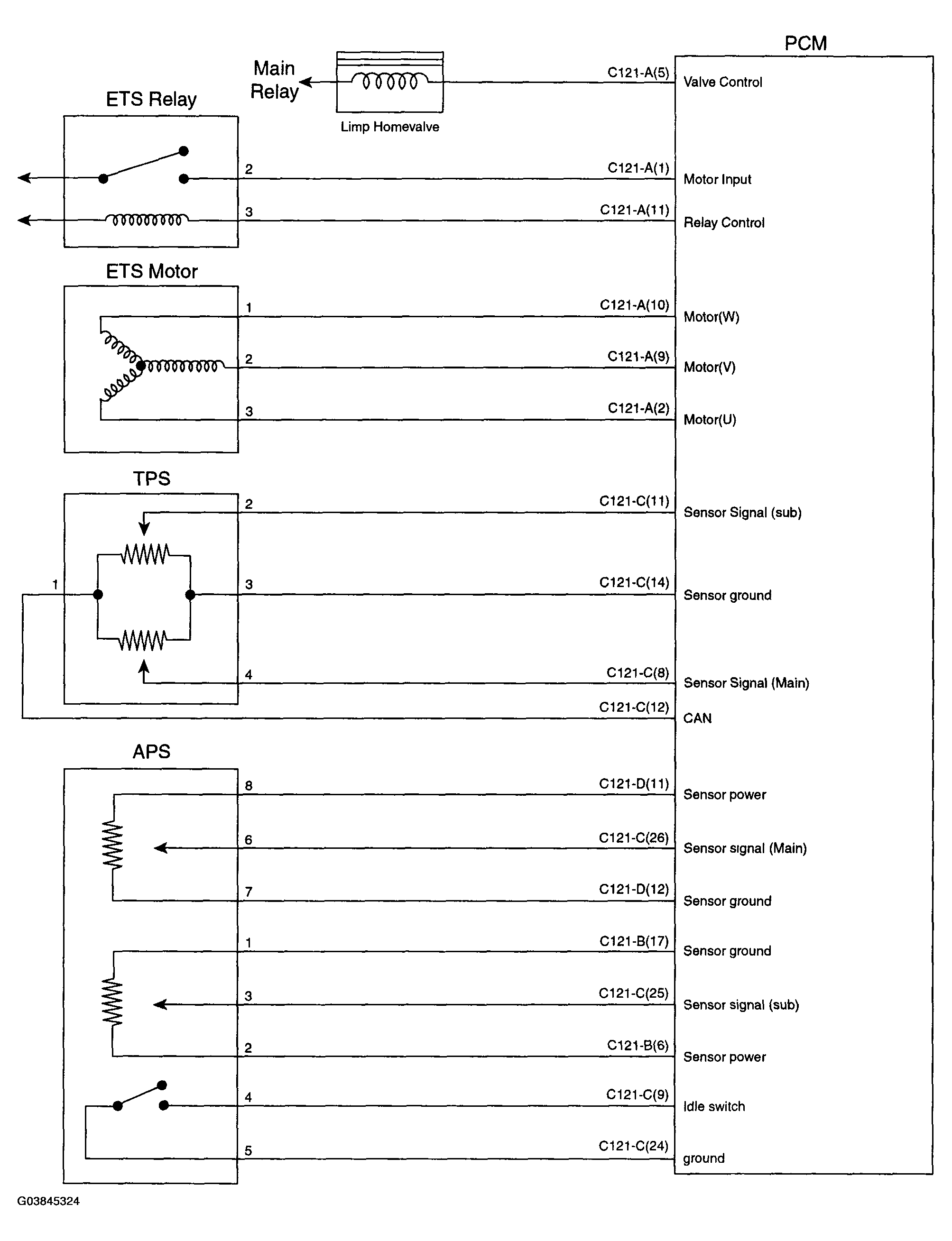

Home >> Hyundai >> 2005 >> Santa Fe GLS, 3.5 E, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6CU-GSL 3.5) >> Gasoline Engine Control System >> Electric Throttle System (ETS) >> Electronic Throttle System >> Circuit Diagram
