Fuel Injector: Components

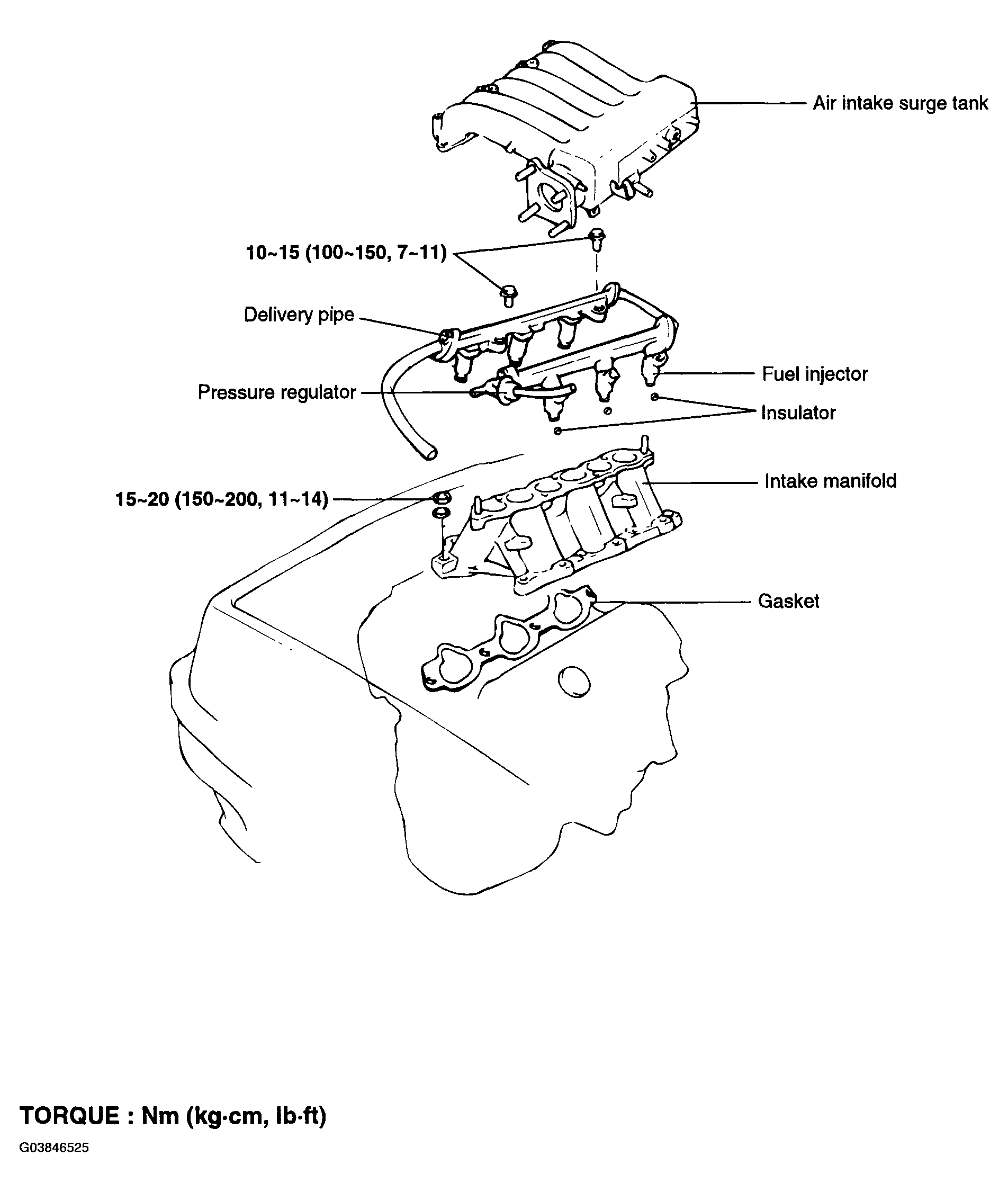

Fig 1: Fuel Injector Replacement Components With Torque Specifications

G03846525

Courtesy of HYUNDAI MOTOR CO.
