Clutch System
>>
Components
Clutch System: Components

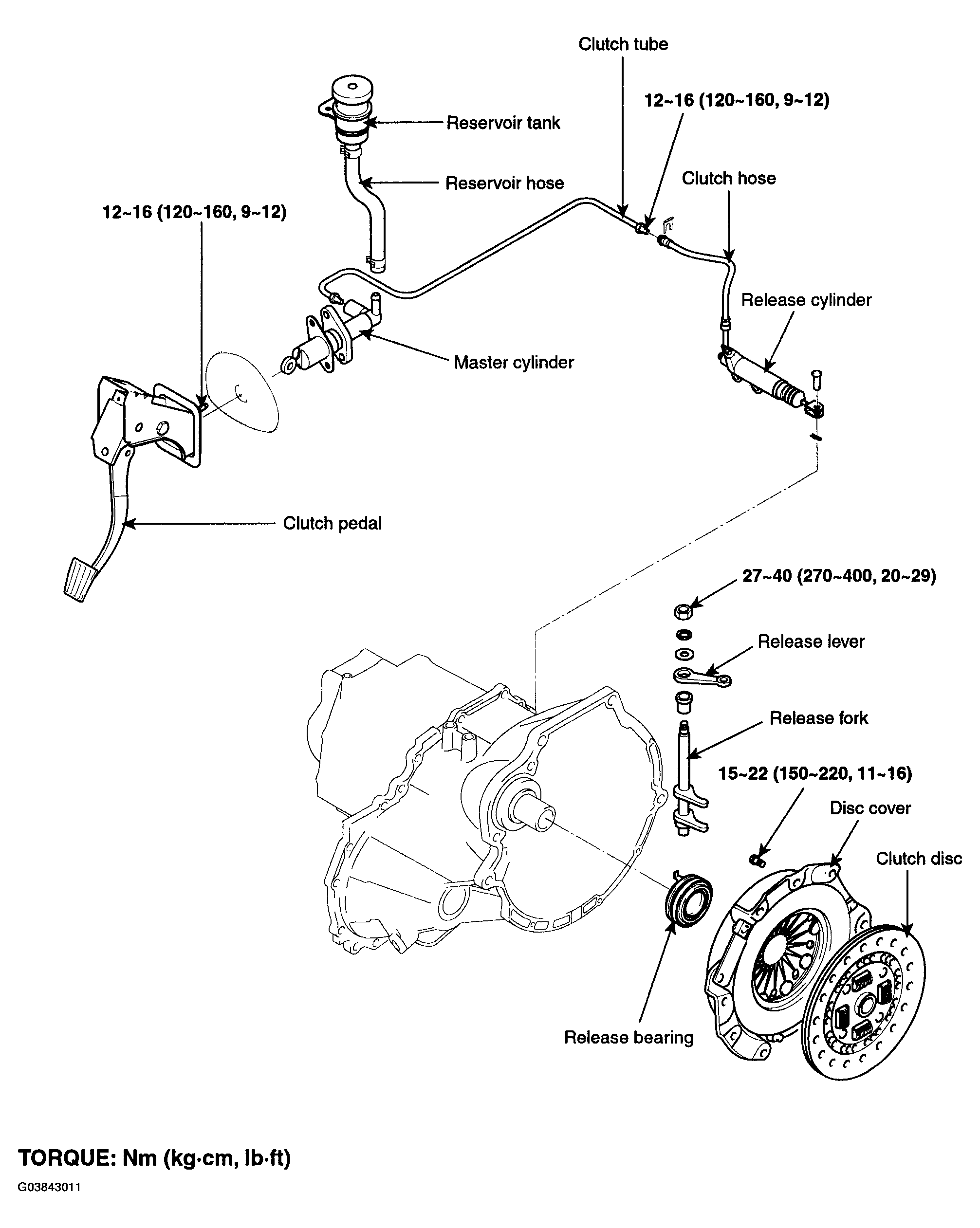

Fig 1: Exploded View Of Clutch System Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
