Shift Lever: Components

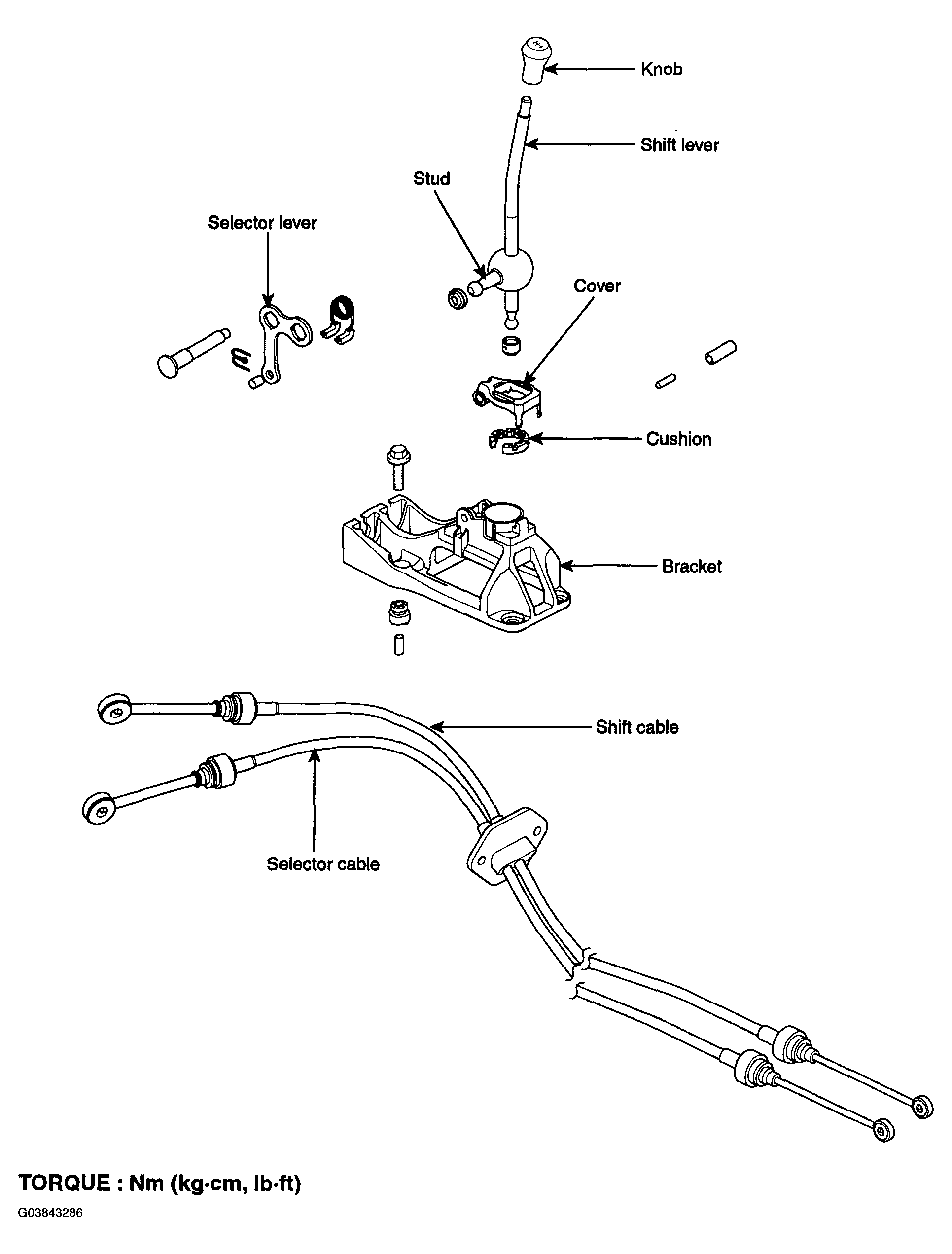

Fig 1: Shift Lever Replacement Components With Torque Specifications

G03843286

Courtesy of HYUNDAI MOTOR CO.
