Manual Transaxle Shift Control: Removal

  1. Remove the shift knob.
  2. Remove the console assembly.
  3. Remove the cotter pins and clips (shift lever side).
  4. Remove the retainer(A) and bolts(B).

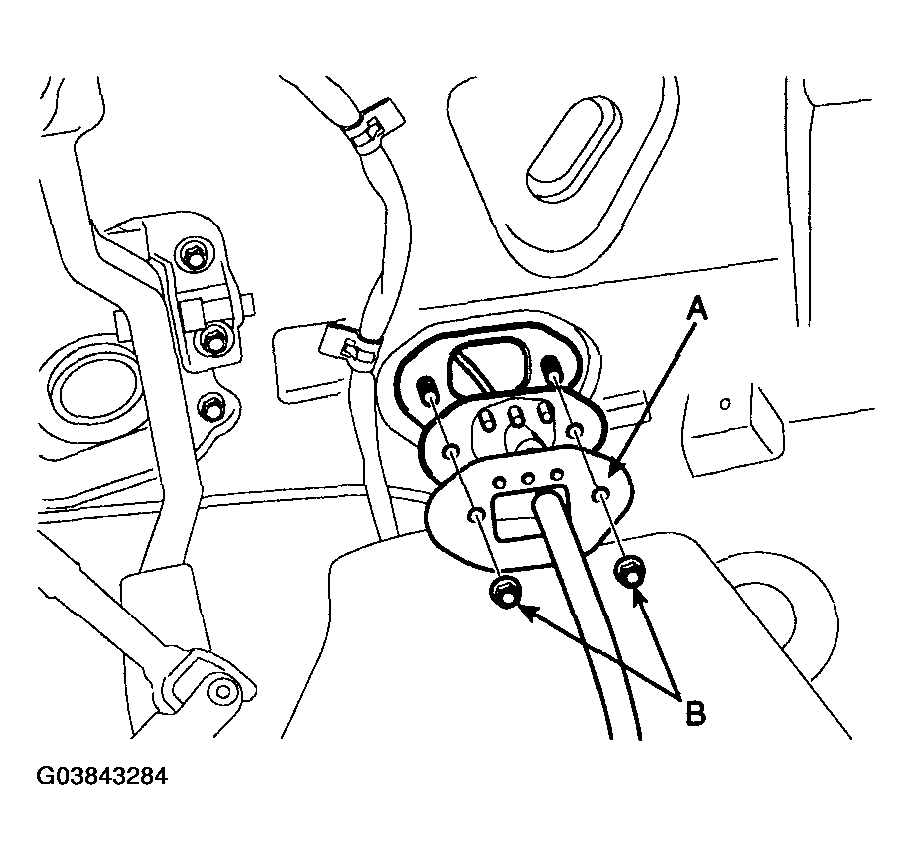

    Fig 1: Removing Retainer And Bolts
    G03843284Courtesy of HYUNDAI MOTOR CO.
  5. Remove the cotter pins and clips(A) (Transaxle side).

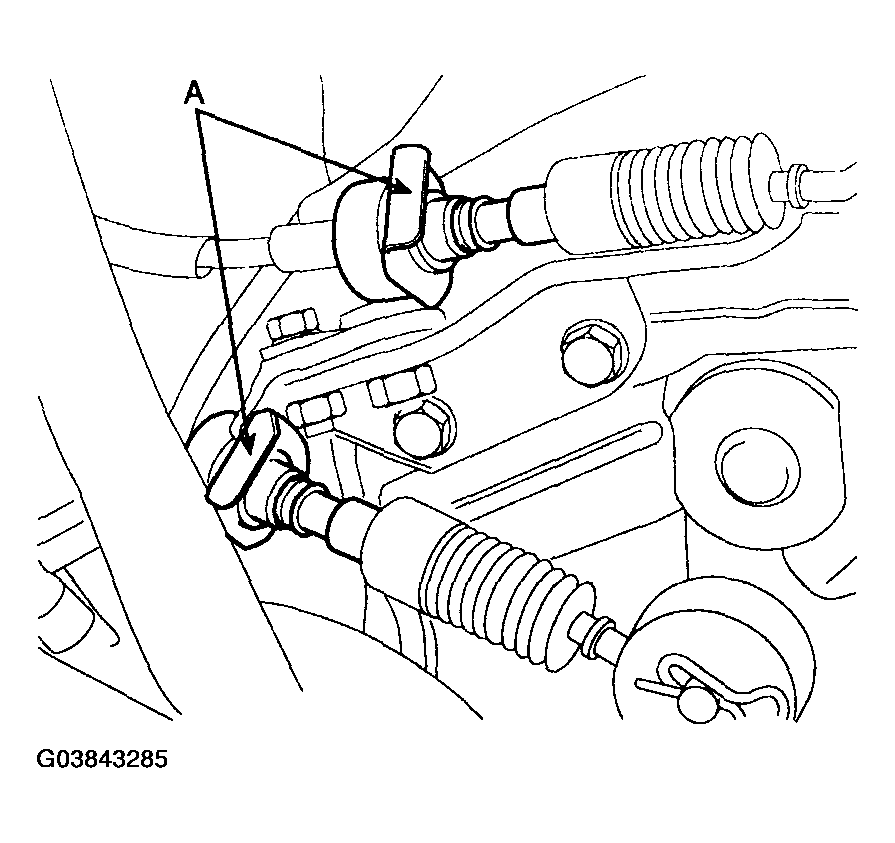

    Fig 2: Removing Cotter Pins And Clips
    G03843285Courtesy of HYUNDAI MOTOR CO.
  6. Remove the shift cable and selector cable.
