Manual Transaxle Shift Control: Components

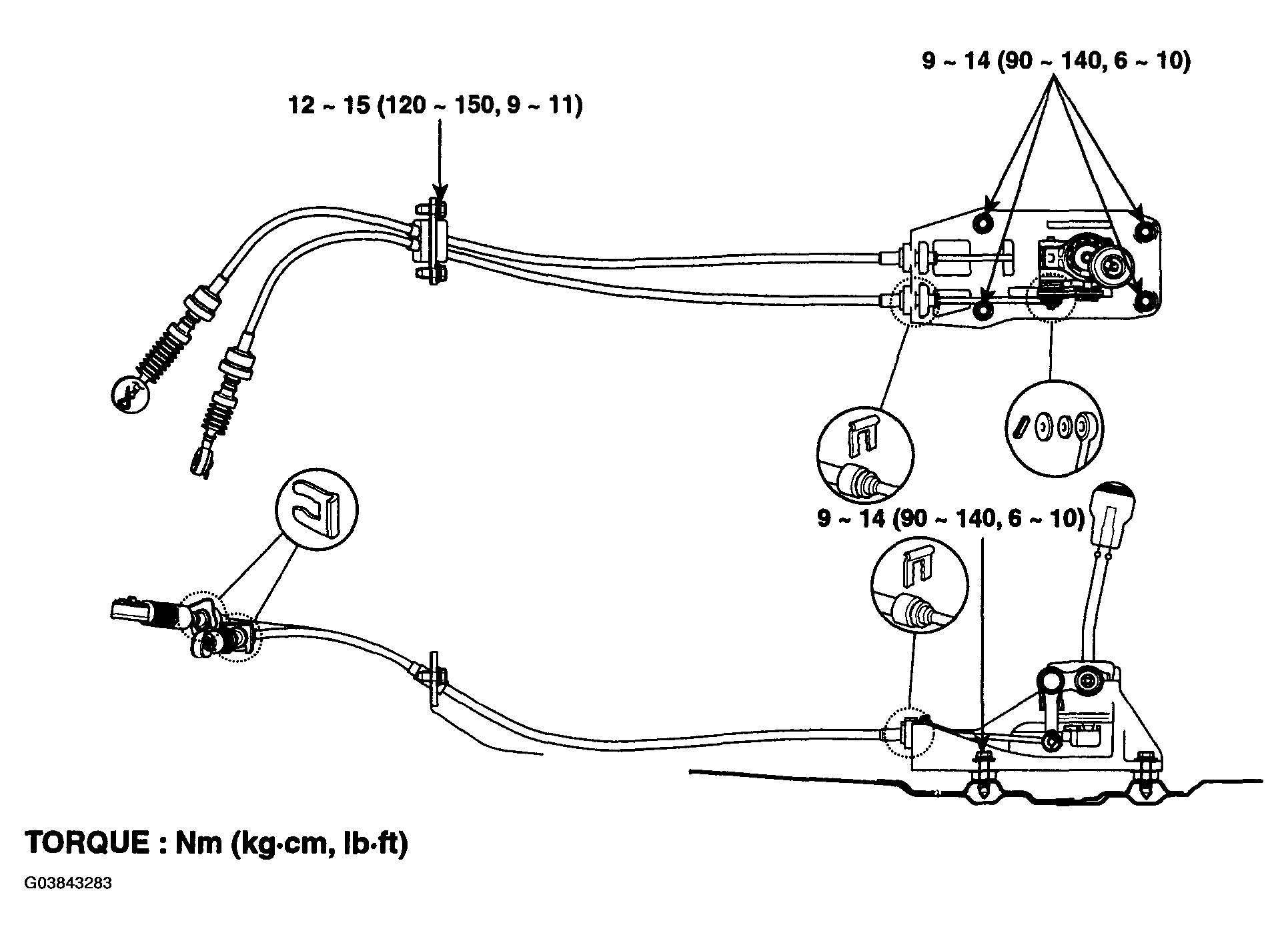

Fig 1: Identifying Manual Transaxle Shift Control Components With Toque Specifications

G03843283

Courtesy of HYUNDAI MOTOR CO.
