DTC P0715: Input Shaft Speed Sensor: Notes

WARNING: This page is about a different variant/trim than selected.
DIAGNOSTIC ITEM

DTC Diagnostic item
P0715 Input shaft speed sensor Open, short to battery, short to ground

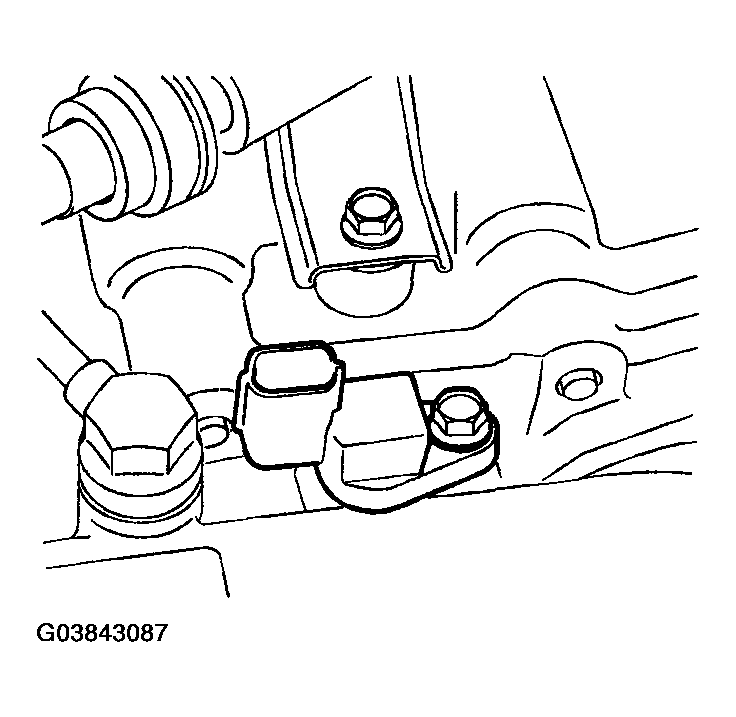

Fig 1: Locating Bolt
G03843087Courtesy of HYUNDAI MOTOR CO.

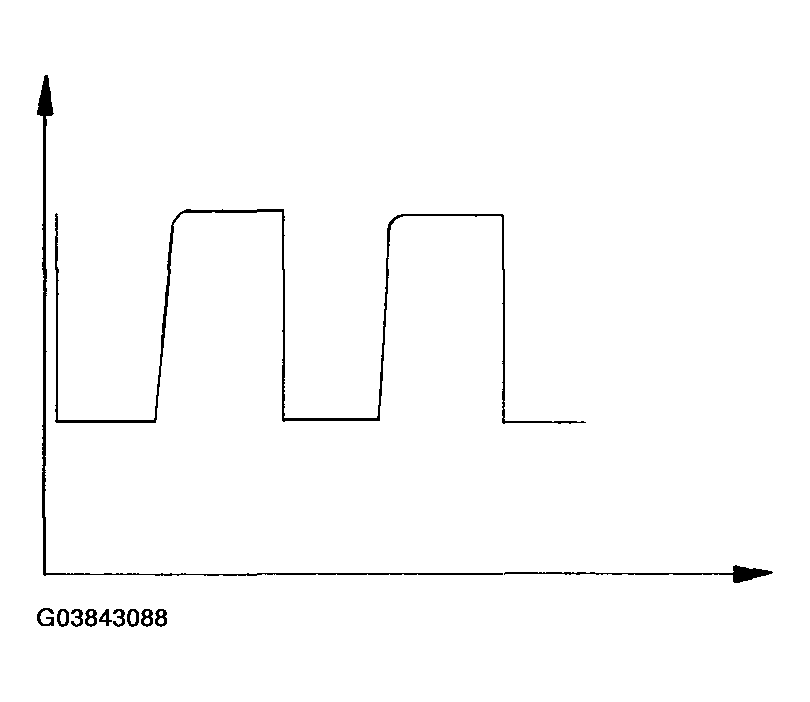

Fig 2: DTC Blinking Pattern
G03843088Courtesy of HYUNDAI MOTOR CO.
