Pumping Current Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect HO2S and PCM connectors.
  3. Measure resistance between terminals 1 of the sensor harness connector and 41 of the PCM harness connector

    Specification : Approx. 0Ω

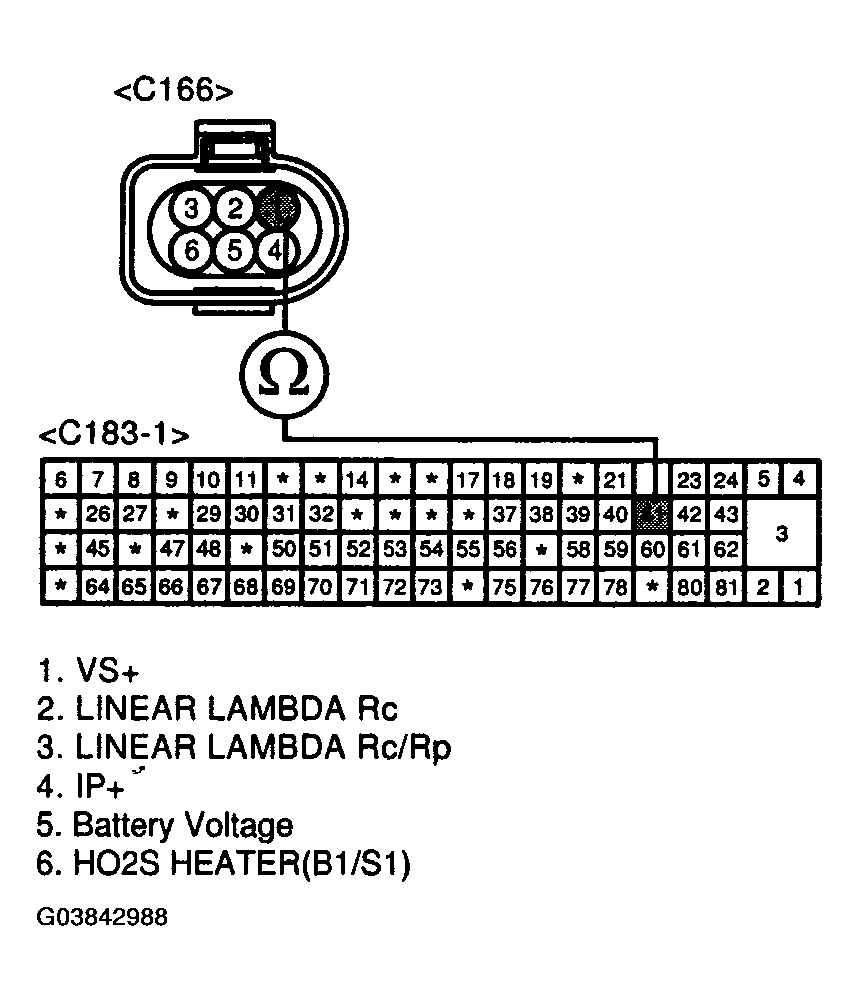

    Fig 1: Measuring Resistance Between Terminals 1 Of Sensor Harness Connector And 41 Of PCM Harness Connector
    G03842988Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    NO
