Can High Line Inspection

Check for Open in harness.
1. Ignition "OFF".
2. Measure resistance between terminals 7 of the PCM harness connectors and 11 of the ABS control module harness connector.
  Specification : Approx. 0Ω

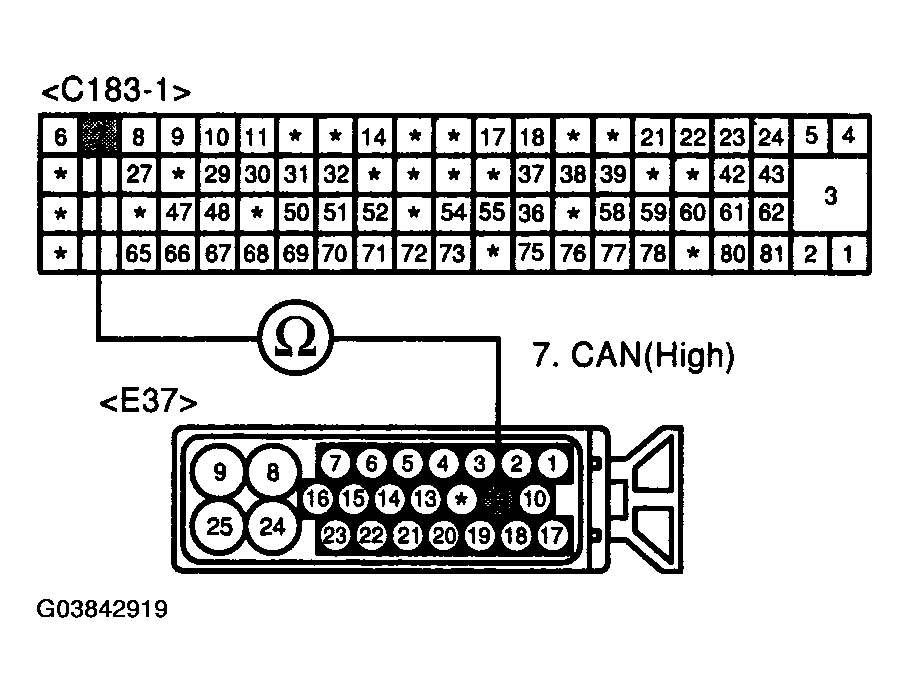

  Fig 1: Measuring Resistance Between Terminals 7 Of PCM Harness Connectors And 11 Of ABS Control Module Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
3. Is resistance within the specification?
  YES
  - Go to "Check for short to ground in harness" procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
  [Without ABS]
4. Measure resistance between terminals 7 of the PCM harness connectors and 1 of the vertical resistor.
  Specification: Approx. 0Ω

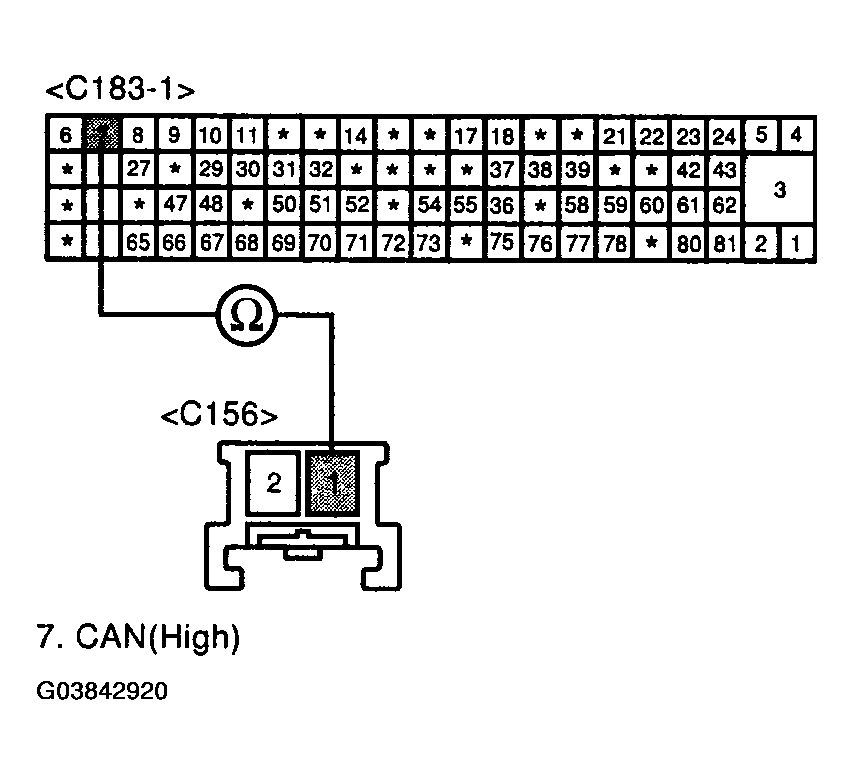

  Fig 2: Measuring Resistance Between Terminals 7 Of PCM Harness Connectors And 1 Of Vertical Resistor
  Courtesy of HYUNDAI MOTOR CO.
5. Is resistance within the specification?
  YES
  - Go to "Check for short to ground in harness" procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
Check for short to ground in harness.
1. Measure resistance between terminals 7 of the PCM harness connectors and chassis ground.
  Specification : Infinite

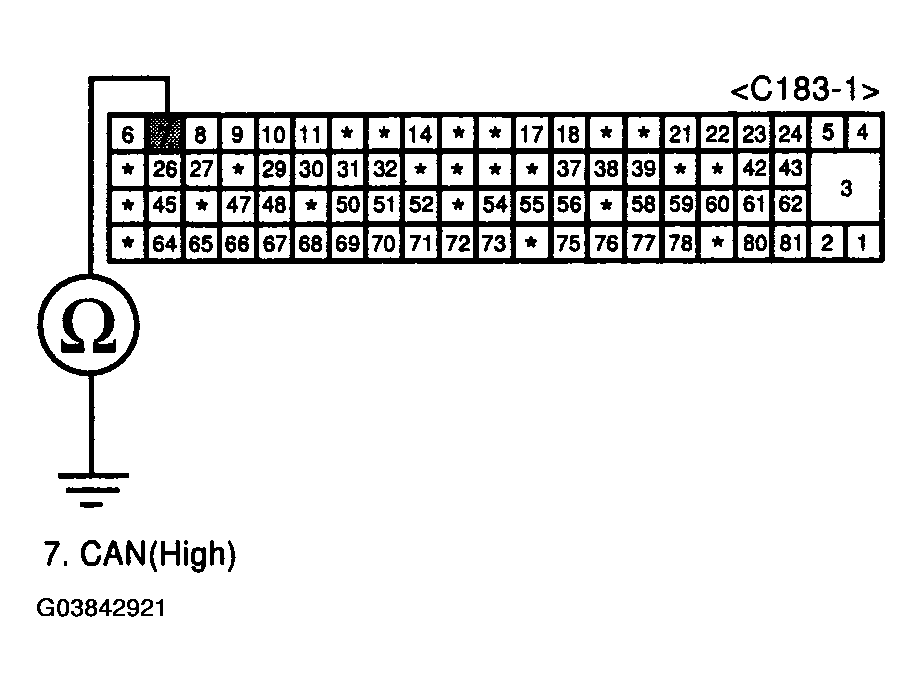

  Fig 3: Measuring Resistance Between Terminals 7 Of PCM Harness Connectors And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
2. Is resistance within the specification?
  YES
  - Go to next step as below.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
Check for short to battery in harness.
1. Ignition "ON" & Engine "OFF".
2. Measure resistance between terminals 7 of the PCM harness connectors and chassis ground
  Specification: Approx. 0V

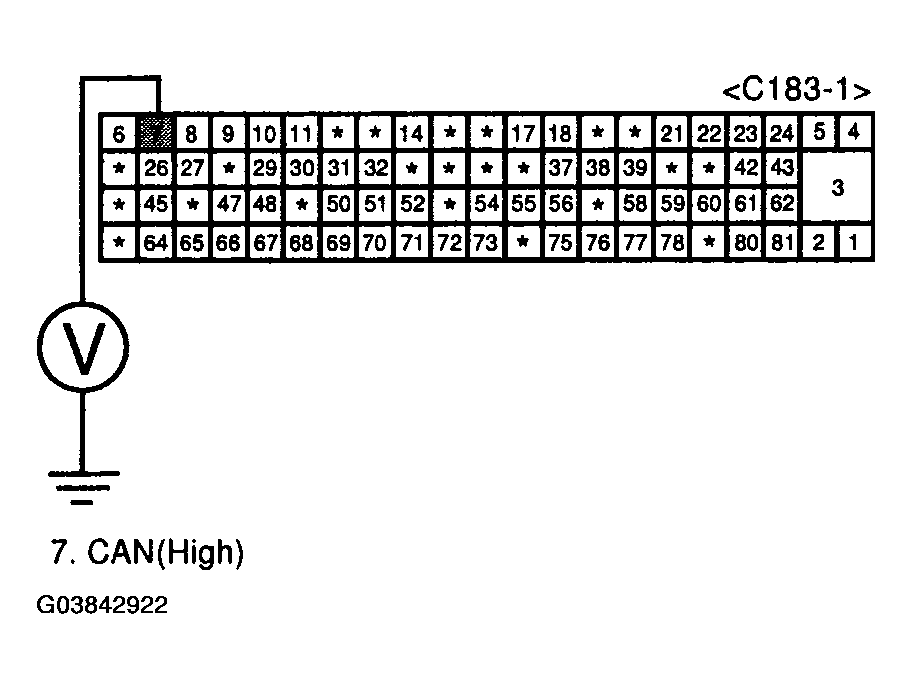

  Fig 4: Measuring Resistance Between Terminals 7 Of PCM Harness Connectors And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
3. Is voltage within the specification?
  YES
  - Go to CAN LOW LINE INSPECTION procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
