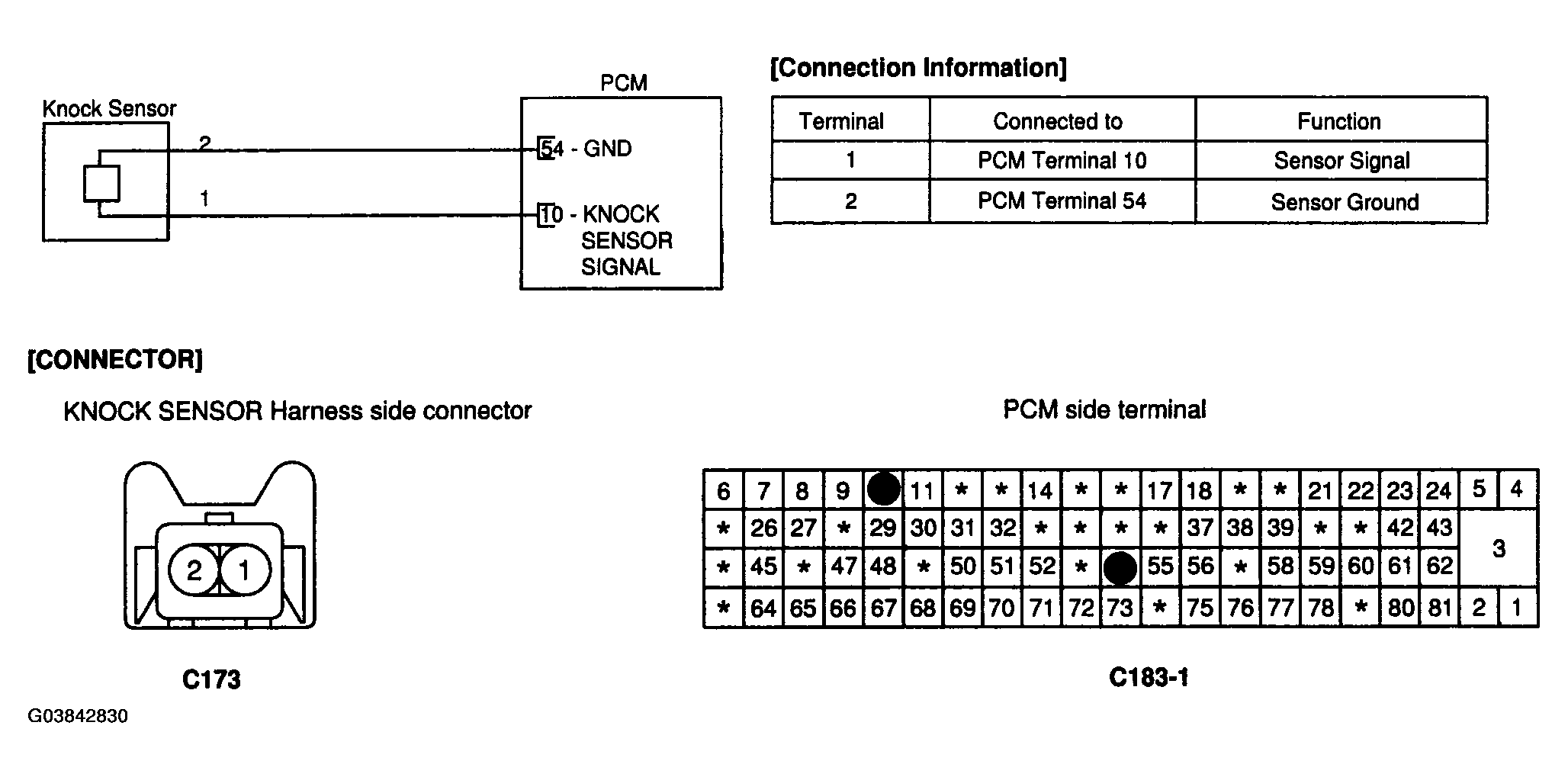

Home >> Hyundai >> 2005 >> Elantra GLS, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Troubleshooting Procedures >> DTC P0325: Knock Sensor 1 Circuit >> Schematic Diagram
