Ignition Coil Inspection

  1. Ignition "OFF"
  2. Ignition coil connector: Disconnect
  3. Visually/physically inspect the following items:
    • Damage, cracks and flashover
  4. Measure the primary coil resistance between terminals 1,3 and 2,3

    SPECIFICATION

    IGNITION PRIMARY COIL SPECIFICATIONS

    Temp.(°C) Temp.(°F) Ignition Primary Coil (Ω)
    20 68 0.58Ω +/- 10%

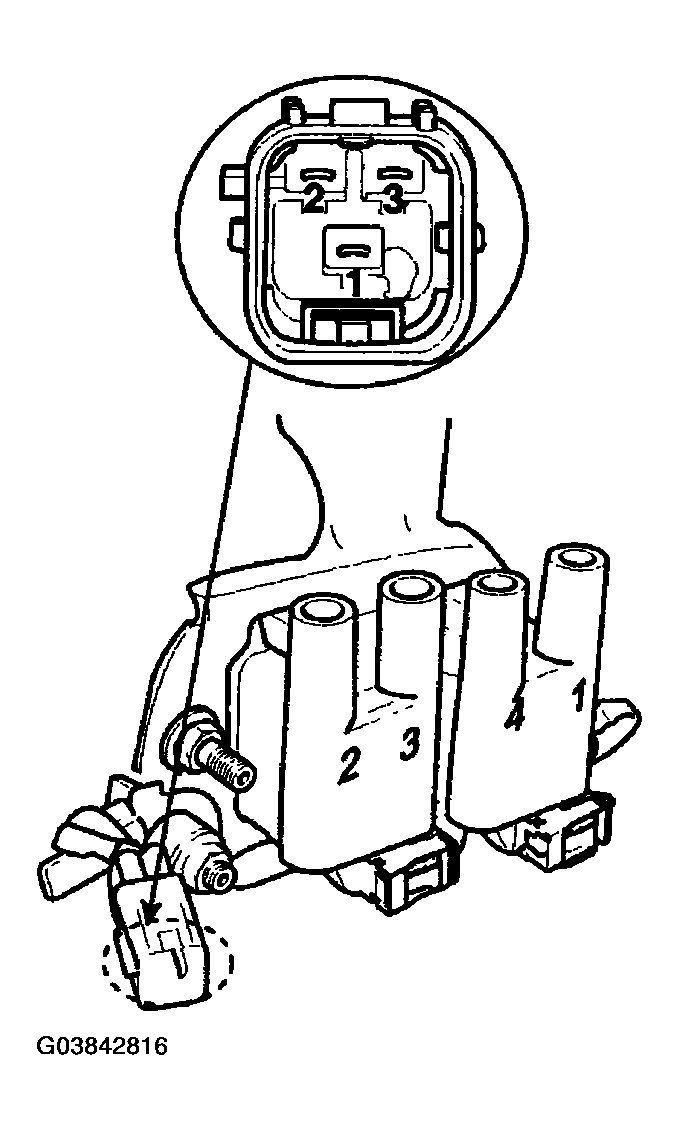

    Fig 1: Measuring Primary Coil Resistance Between Terminals 1,3 And 2,3
    G03842816Courtesy of HYUNDAI MOTOR CO.
  5. Is resistance within the specified value?

    YES

    NO
