Ground Circuit Inspection

Ignition "OFF".
Disconnect PCM connector.
Measure resistance between terminals 3 of the sensor harness connector and 73 of the PCM harness connector.
Specification : Approx. 0Ω

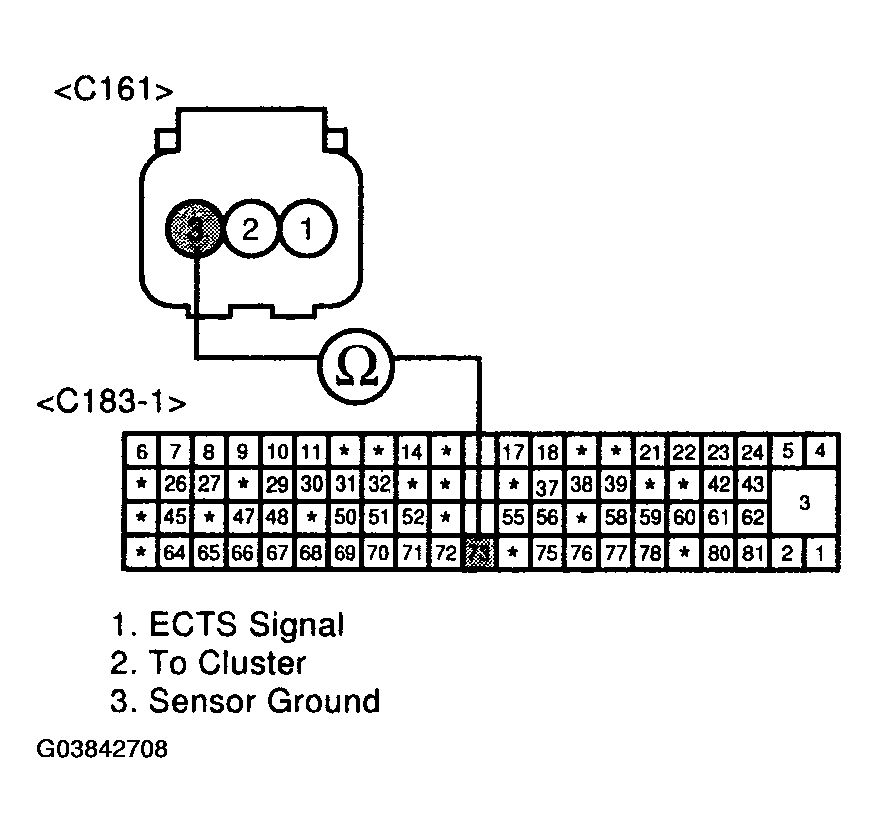

Fig 1: Measuring Resistance Between Terminals 3 Of Sensor Harness Connector And 73 Of PCM Harness Connector
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Repair open circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
