Home >> Hyundai >> 2005 >> Elantra GLS, 4D Hatchback, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Troubleshooting (A/T) >> Notes

Troubleshooting (A/T): Notes

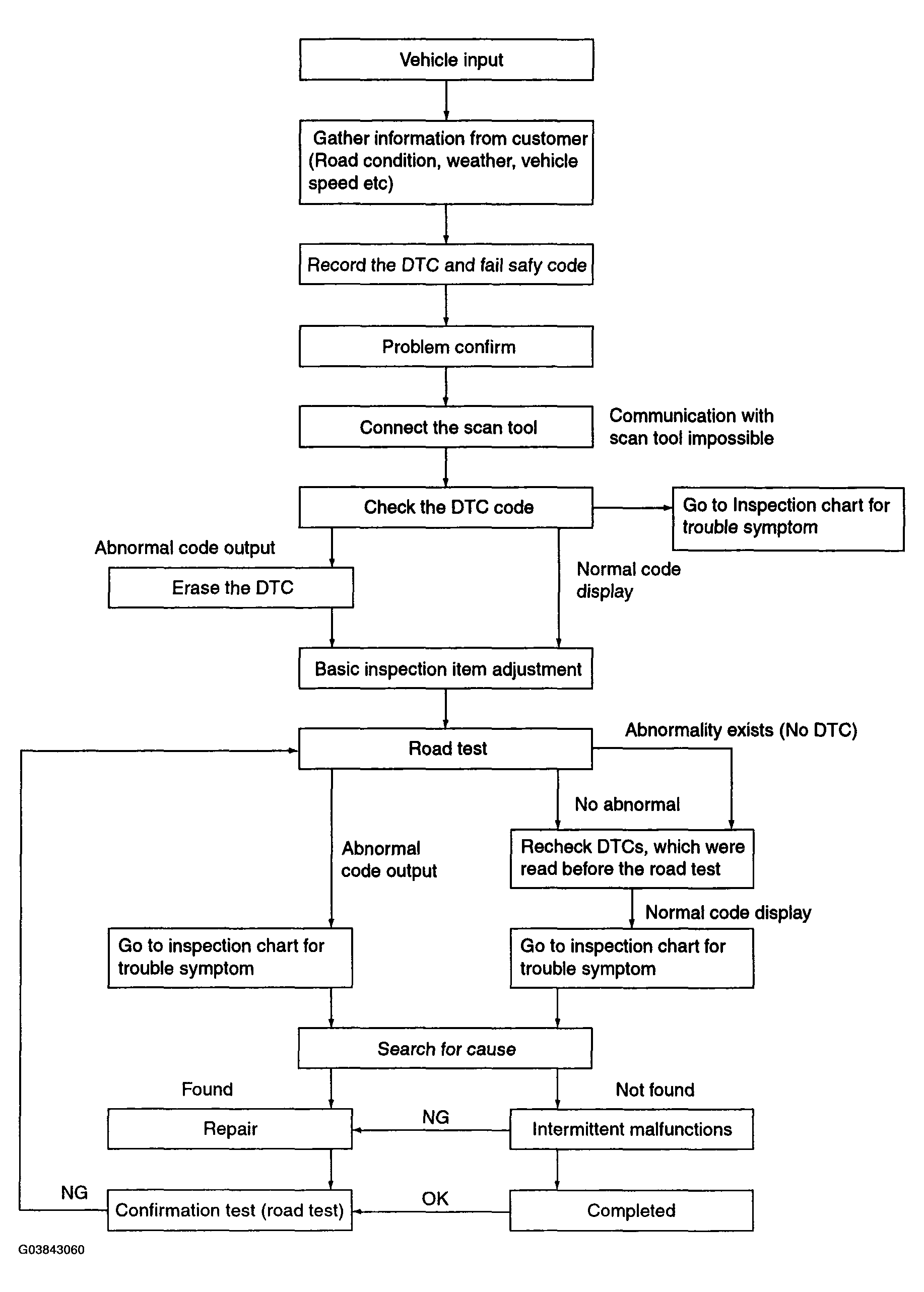

Fig 1: Automatic Transaxle (F4A42) Troubleshooting Flow Chart

G03843060

Courtesy of HYUNDAI MOTOR CO.
