Solenoid Valve Check

Remove the valve body cover.
Disconnect the connectors of each solenoid valve.

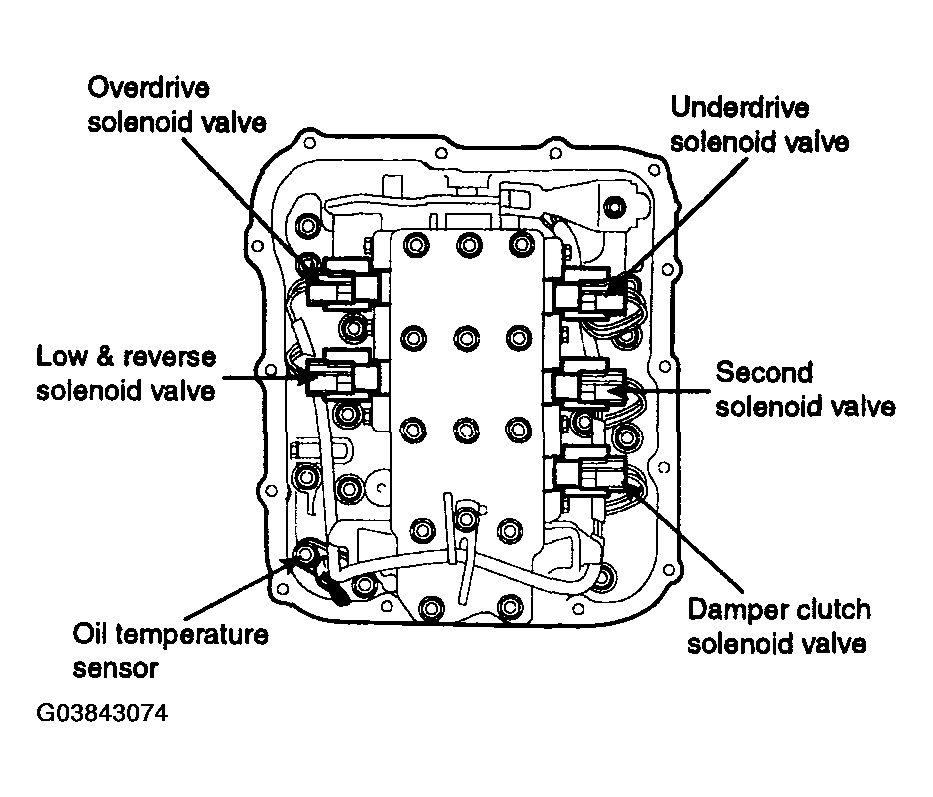

Fig 1: Checking Solenoid Valve
Courtesy of HYUNDAI MOTOR CO.

Measure the resistance between terminals 1 and 2 of each solenoid valve.

SOLENOID VALVE RESISTANCE SPECIFICATIONS

Solenoid	Resistance
Damper clutch solenoid valve	2.7~3.4Ω (at 20°C)
Low and reverse solenoid valve
Second solenoid valve
Underdrive solenoid valve
Overdrive solenoid valve

Fig 2: Measuring Resistance Between Solenoid Valve Terminals 1 And 2

Courtesy of HYUNDAI MOTOR CO.

If the resistance is outside the standard value, replace the solenoid valve.

NOTE: Resistance of the solenoid valve connector.

SOLENOID VALVE RESISTANCE SPECIFICATIONS

Terminal No.	Name	Resistance
7 & 10	Damper clutch solenoid valve	2.7~3.4Ω (at 20°C)
10 & 6	Low and reverse solenoid valve
9 & 4	Second solenoid valve
9 & 3	Underdrive solenoid valve
9 & 5	Overdrive solenoid valve

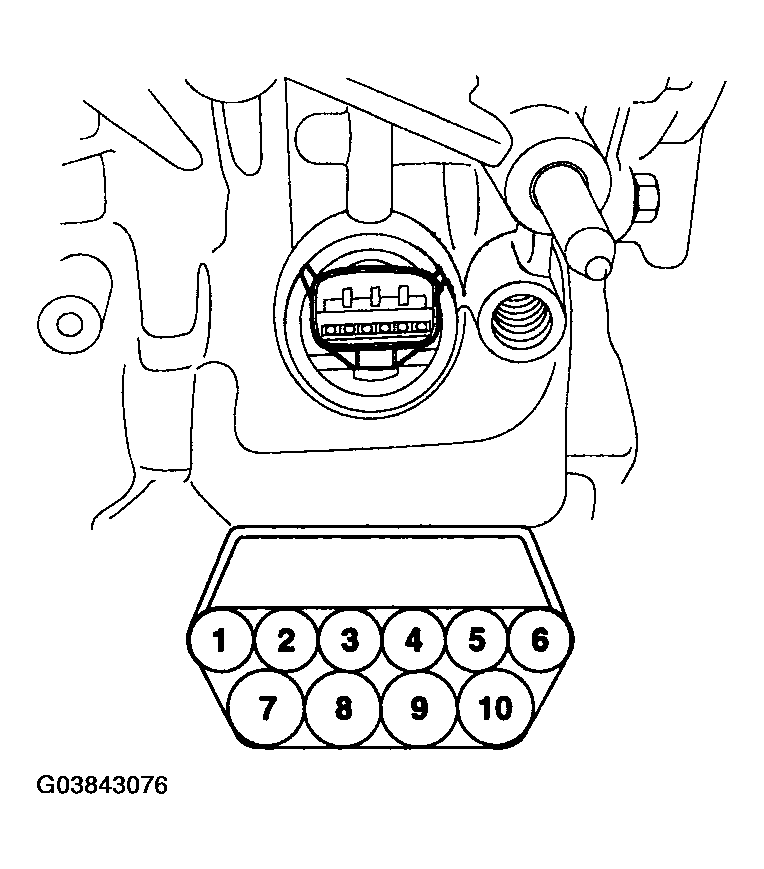

Fig 3: Identifying Solenoid Valve Connector

Courtesy of HYUNDAI MOTOR CO.
