General Information (F4A42)

Automatic transaxle overhaul section has been separated from the shop manual.

F4A42 overhaul section was included in the overhaul manual.

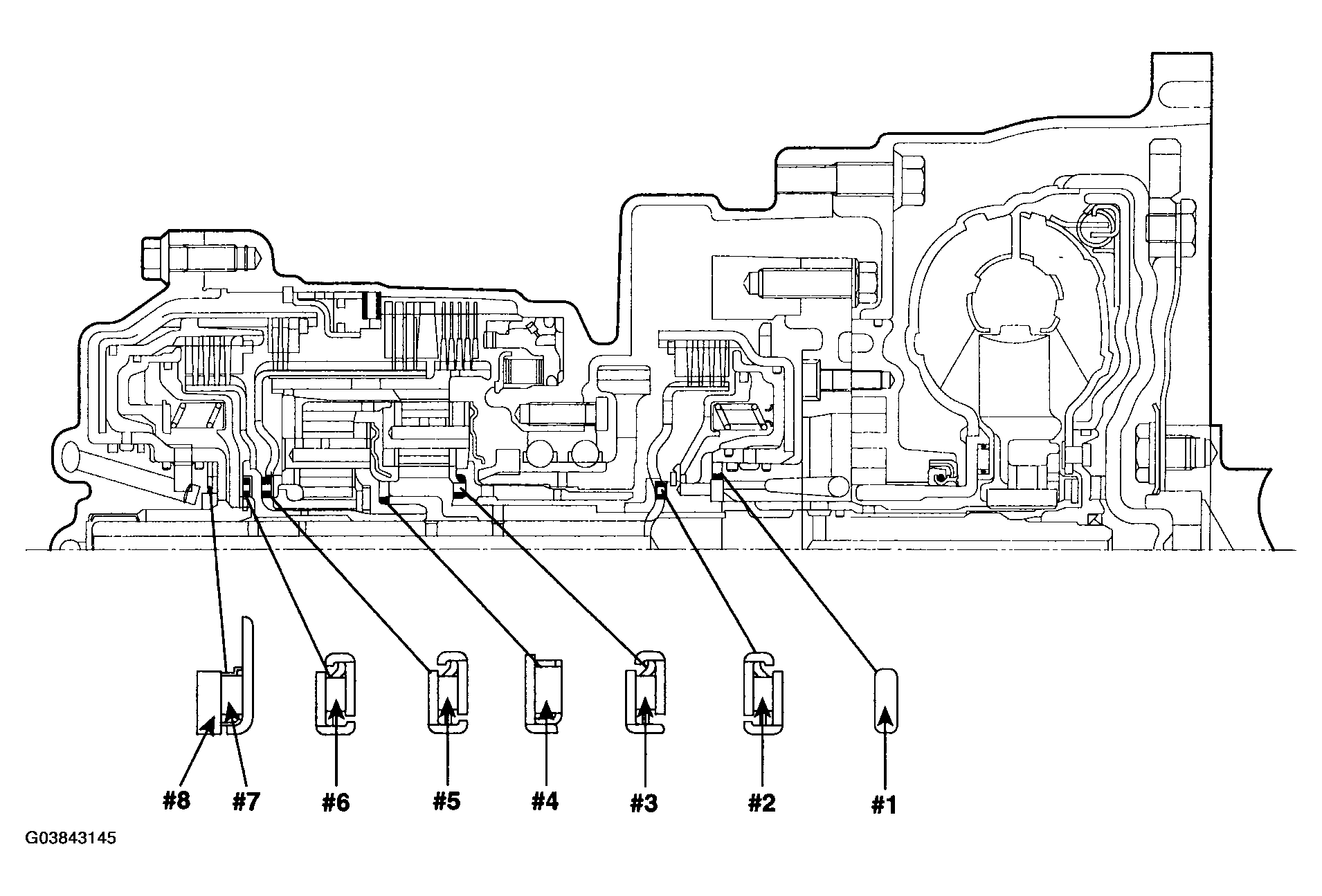

Fig 1: Identifying Automatic Transaxle

Courtesy of HYUNDAI MOTOR CO.

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS

O.D.	I.D.	Thickness	Symbol	O.D.	I.D.	Thickness	Symbol
59	47	1.8	#1	48.9	37	1.6	#8
59	47	2.0	#1	48.9	37	1.7	#8
59	47	2.2	#1	48.9	37	1.8	#8
59	47	2.4	#1	48.9	37	1.9	#8
59	47	2.6	#1	48.9	37	2.0	#8
59	47	2.8	#1	48.9	37	2.1	#8
49	36	3.6	#2	48.9	37	2.2	#8
49	36	3.6	#3	48.9	37	2.3	#8
45.3	31	3.3	#4	48.9	37	2.4	#8
49	36	3.6	#5	48.9	37	2.5	#8
49	36	3.6	#6	48.9	37	2.6	#8
49	37	2.8	#7	-	-	-	-
