Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inner wheel : 40°1' +/- 2°

    Outer wheel : 33°45'

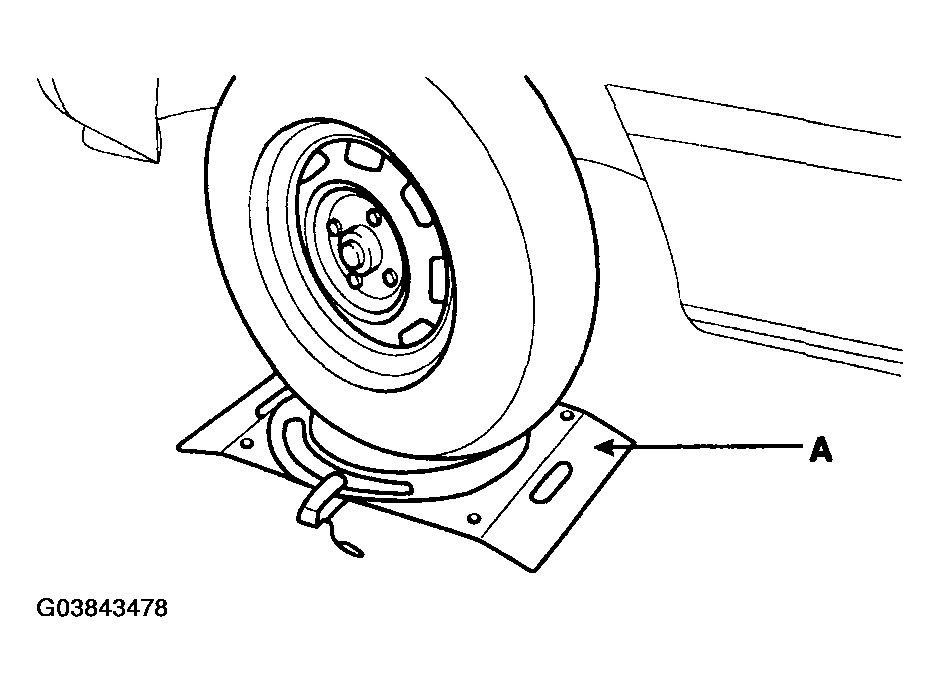

    Fig 1: Checking Steering Angle
    G03843478Courtesy of HYUNDAI MOTOR CO.
  2. If the measured value is not within the standard value, adjust the linkage.
