Schematic Diagram

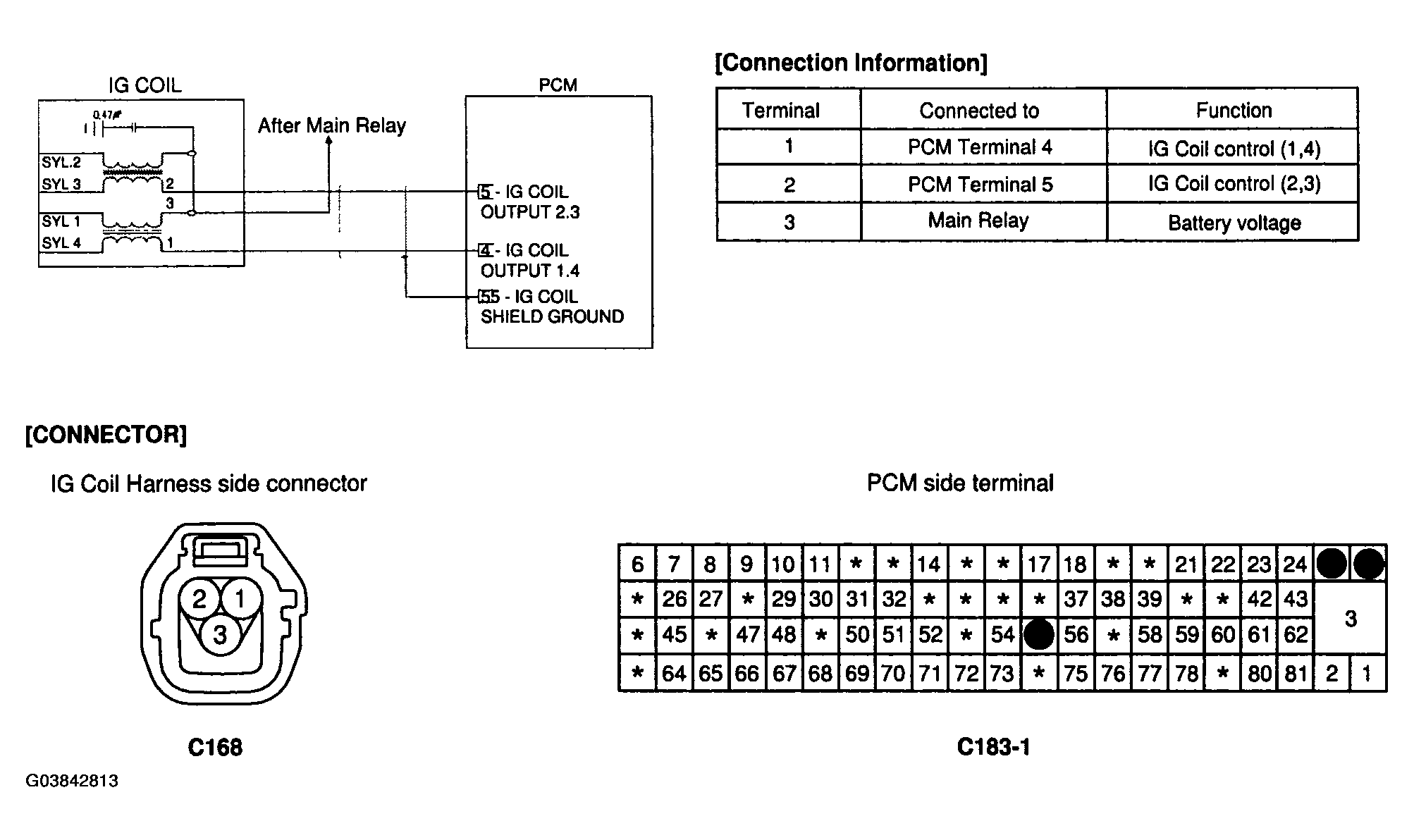

Fig 1: Random/Multiple Cylinder Schematic Diagram
G03842813Courtesy of HYUNDAI MOTOR CO.
