Trunk Lid Replacement

NOTE:
  • When removing and installing the trunk lid, an assistant is necessary.
  • Wear gloves to protect hands from injury.
  1. Disconnect the key cylinder connector (A) and license lamp connector (B).
  2. Disconnect the harness (C) wiring from the panel.

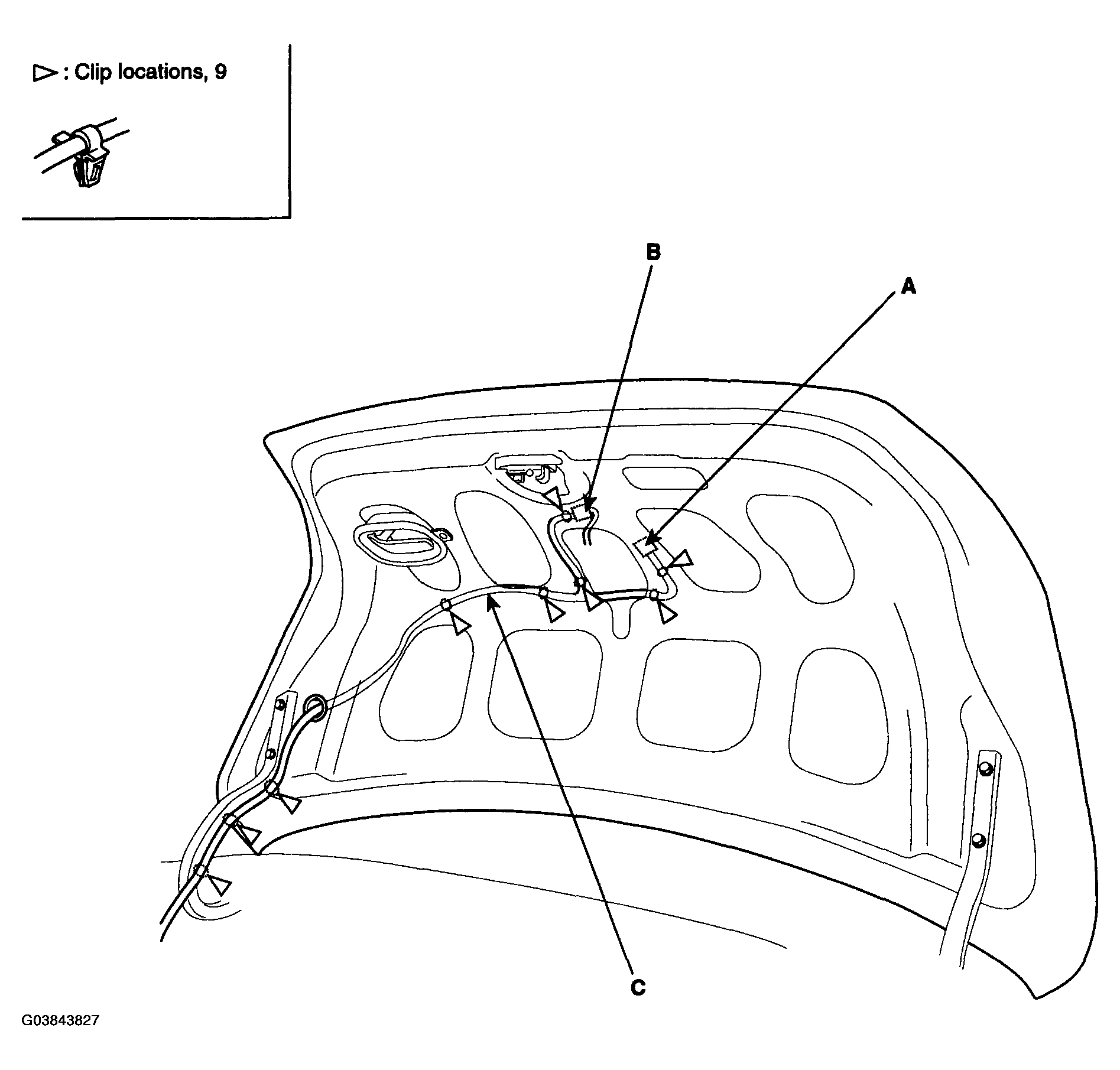

    Fig 1: Disconnecting Harness Wiring From Panel
    G03843827Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the bolts, then remove the trunk lid (A).

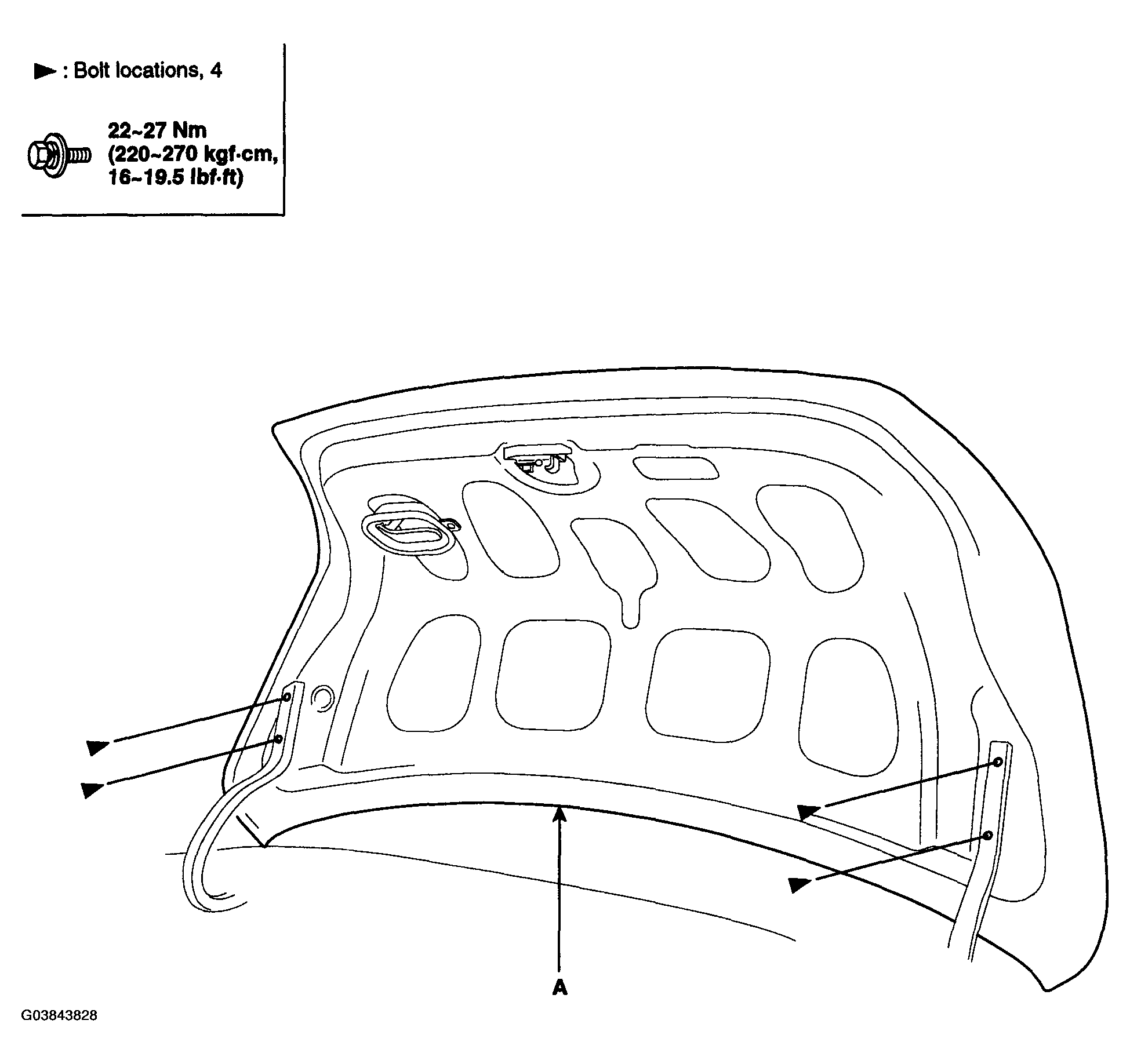

    Fig 2: Removing Trunk Lid & Torque Specifications
    G03843828Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connectors are plugged in properly, and opener cable is connected properly, and the wire harness and opener are routed properly.
    • Make sure the trunk lid opens properly and locks securely.
    • Adjust the trunk lid alignment (see TRUNK LID FUEL FILLER DOOR RELEASE CABLE REPLACEMENT )
