Release Handle Replacement

  1. Remove the cover (A).

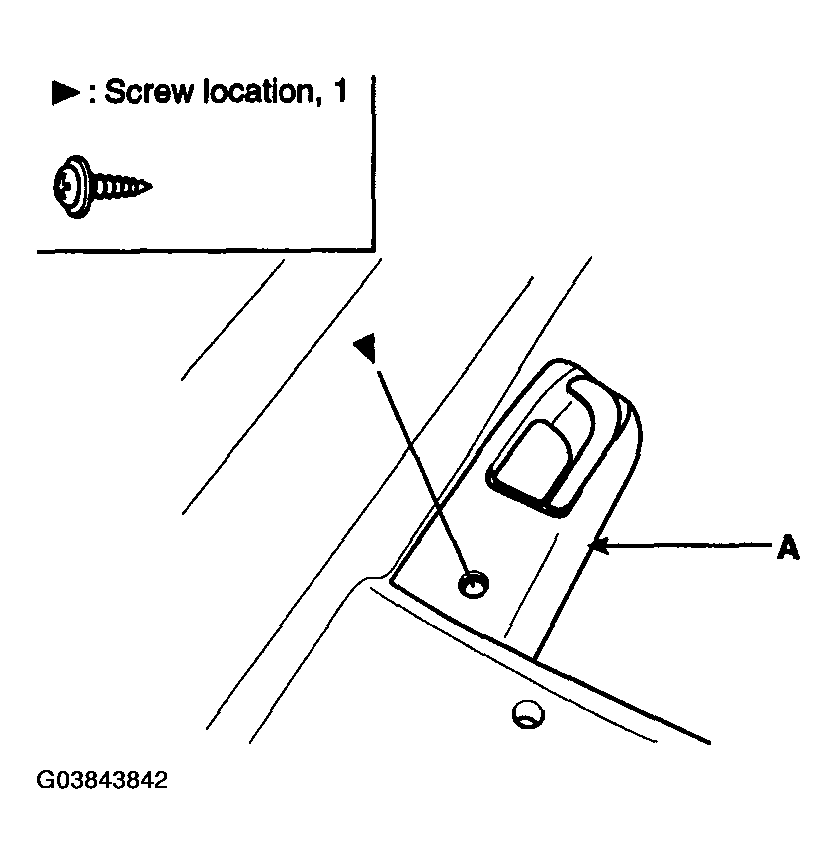

    Fig 1: Removing Cover
    G03843842Courtesy of HYUNDAI MOTOR CO.
  2. Loosen the release handle (A), mounting bolt. Disconnect the release cable (B), then remove the release handle.

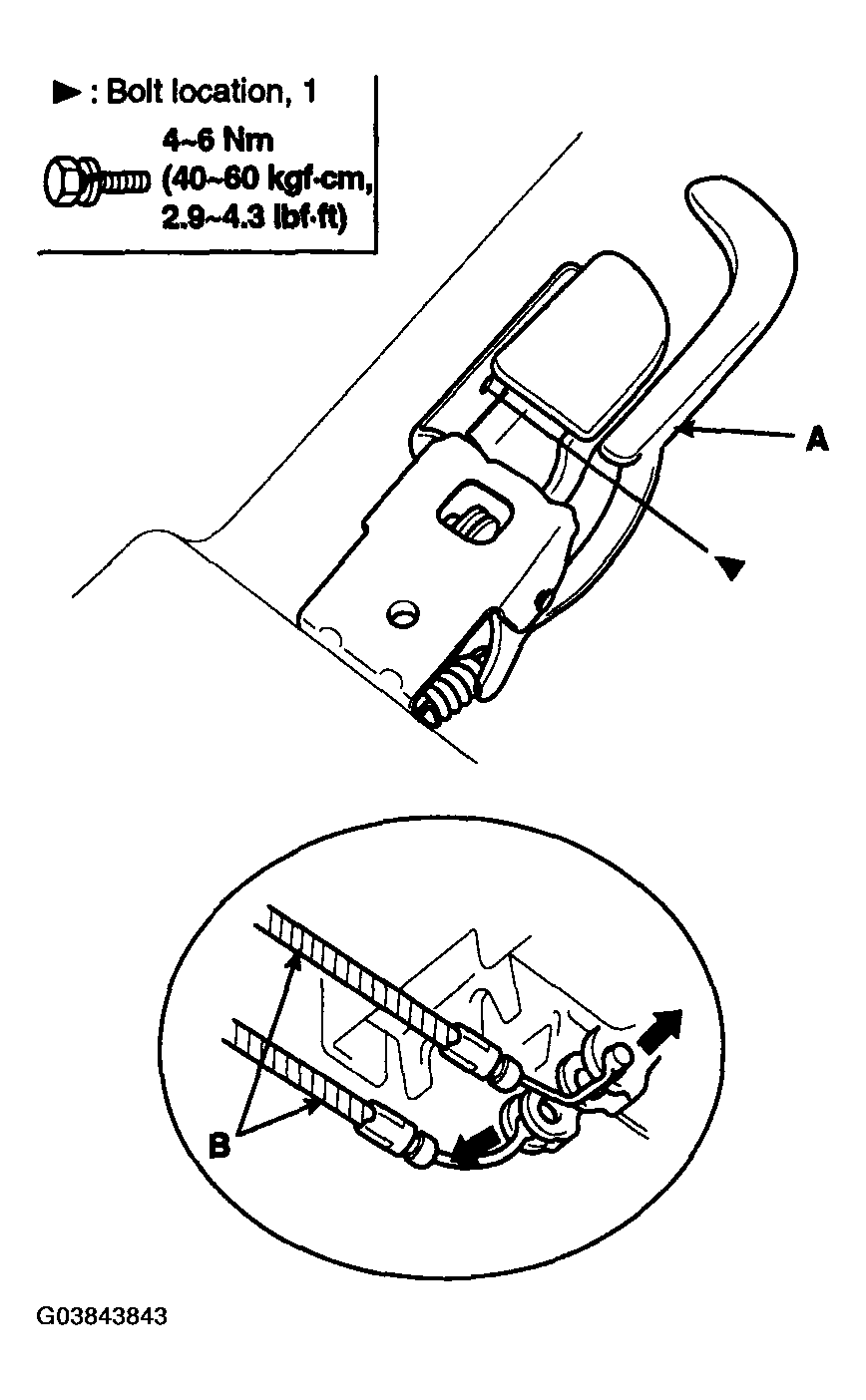

    Fig 2: Disconnecting Release Cable & Torque Specifications
    G03843843Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the release cable is connected properly.
    • Make sure the fuel filler door/trunk lid open properly.
