Key Cylinder Replacement

  1. Remove the trunk lid garnish.
  2. Disconnect the key cylinder (A) connecting rod (B), then loosen the key cylinder mounting nut and remove.

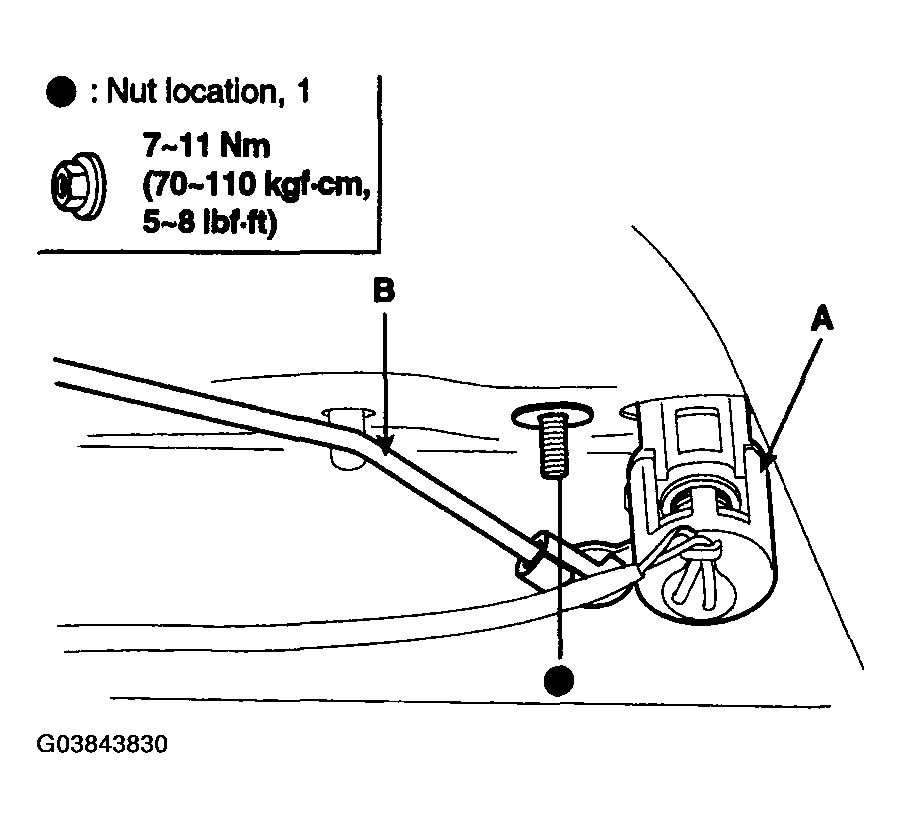

    Fig 1: Disconnecting Key Cylinder And Connecting Rod & Torque Specifications
    G03843830Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is connected properly and the key cylinder rod is connected properly.
    • Make sure the trunk lid opens properly and locks securely.
