Inside Handle Replacement

  1. Disconnect the inside handle cable (A) from the latch (B).
  2. Loosen the inside handle mounting bolts.
  3. Installation is the reverse of removal.

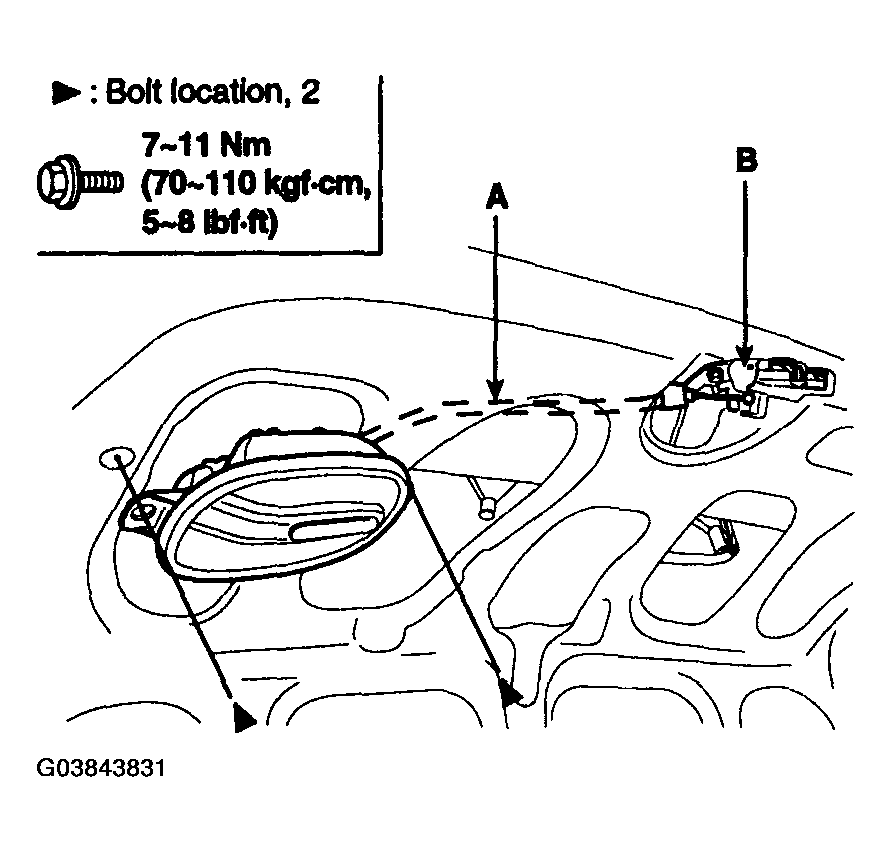

    Fig 1: Loosening Inside Handle Mounting Bolts & Torque Specifications
    G03843831Courtesy of HYUNDAI MOTOR CO.
