Motor And Controller Replacement

  1. Remove the headliner (see HEADLINER REMOVAL AND INSTALLATION ).
  2. Disconnect the motor connector (A), remove the screws and then remove the motor (B).
  3. Disconnect the controller connector (C), and remove the controller (D).
  4. Installation is the reverse of removal.

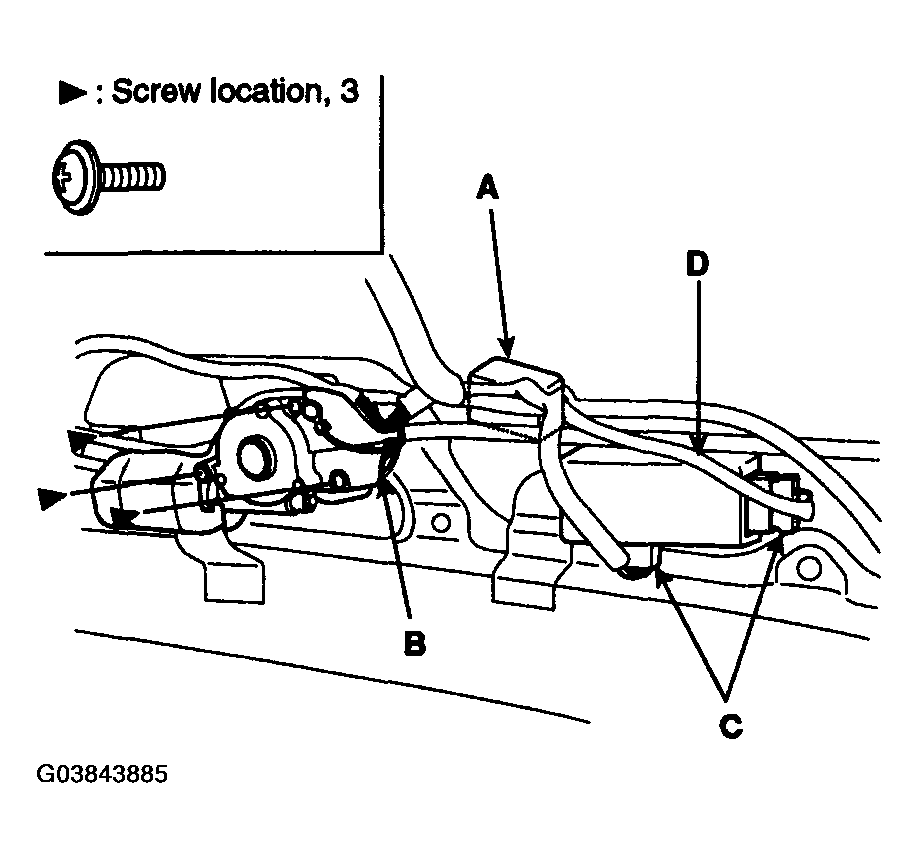

    Fig 1: Disconnecting Controller Connector
    G03843885Courtesy of HYUNDAI MOTOR CO.
